BSZ0910NDXTMA1

BSZ0910NDXTMA1

Part NumberBSZ0910NDXTMA1

ManufacturerInfineon Technologies

DescriptionDIFFERENTIATED MOSFETS

DatasheetBSZ0910ND

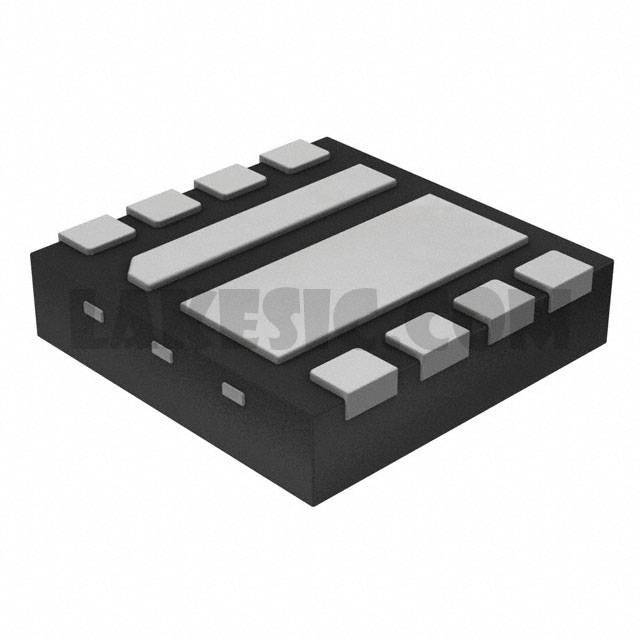

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 30V 9.5A (Ta), 25A (Tc) 1.9W (Ta), 31W (Tc) Surface Mount PG-WISON-8

To learn about the specification of BSZ0910NDXTMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BSZ0910NDXTMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BSZ0910NDXTMA1.
We are offering BSZ0910NDXTMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BSZ0910NDXTMA1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	BSZ0910ND
Standard Package	5000
Manufacturer	Infineon Technologies
Series	OptiMOS™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate, 4.5V Drive
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	9.5A (Ta), 25A (Tc)
Rds On (Max) @ Id, Vgs	9.5mOhm @ 9A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	5.6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	800pF @ 15V
Power - Max	1.9W (Ta), 31W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerVDFN
Supplier Device Package	PG-WISON-8
