BSZ15DC02KDHXTMA1

BSZ15DC02KDHXTMA1

Part NumberBSZ15DC02KDHXTMA1

ManufacturerInfineon Technologies

DescriptionMOSFET N/P-CH 20V 8TDSON

DatasheetBSZ15DC02KDH*

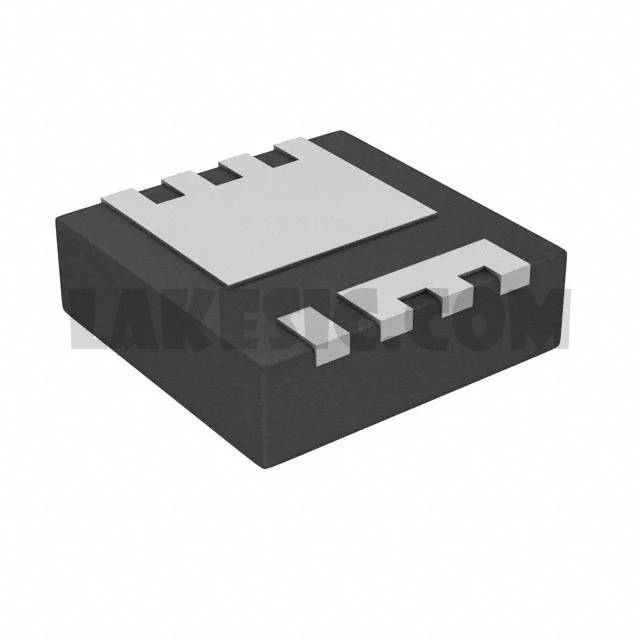

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array N and P-Channel Complementary 20V 5.1A, 3.2A 2.5W Surface Mount PG-TSDSON-8-FL

To learn about the specification of BSZ15DC02KDHXTMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BSZ15DC02KDHXTMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BSZ15DC02KDHXTMA1.
We are offering BSZ15DC02KDHXTMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BSZ15DC02KDHXTMA1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	BSZ15DC02KDH*
Standard Package	1
Manufacturer	Infineon Technologies
Series	Automotive, AEC-Q101, HEXFET®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N and P-Channel Complementary
FET Feature	Logic Level Gate, 2.5V Drive
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	5.1A, 3.2A
Rds On (Max) @ Id, Vgs	55mOhm @ 5.1A, 4.5V
Vgs(th) (Max) @ Id	1.4V @ 110µA
Gate Charge (Qg) (Max) @ Vgs	2.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	419pF @ 10V
Power - Max	2.5W
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerTDFN
Supplier Device Package	PG-TSDSON-8-FL
