Categories	Discrete Semiconductor Products / Thyristors - TRIACs
Datasheet	BT(A,B)12, T12xx
Standard Package	50
Manufacturer	STMicroelectronics
Series	-
Packaging	Tube
Part Status	Active
Triac Type	Logic - Sensitive Gate
Voltage - Off State	800V
Current - On State (It (RMS)) (Max)	12A
Voltage - Gate Trigger (Vgt) (Max)	1.3V
Current - Non Rep. Surge 50, 60Hz (Itsm)	120A, 126A
Current - Gate Trigger (Igt) (Max)	10mA
Current - Hold (Ih) (Max)	15mA
Configuration	Single
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Through Hole

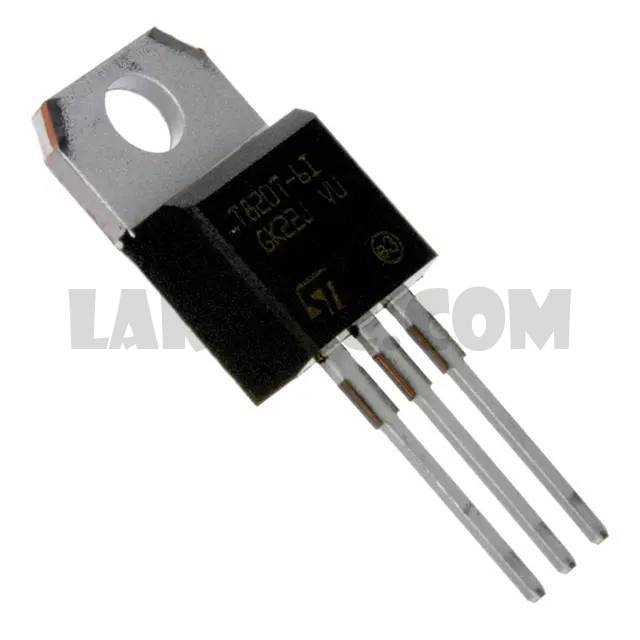

Package / Case	TO-220-3
Supplier Device Package	TO-220AB Insulated
Base Part Number	BTA12
