BUK714R1-40BT,118

Part NumberBUK714R1-40BT,118

ManufacturerNexperia USA Inc.

DescriptionMOSFET N-CH 40V 75A D2PAK

DatasheetBUK714R1-40BT

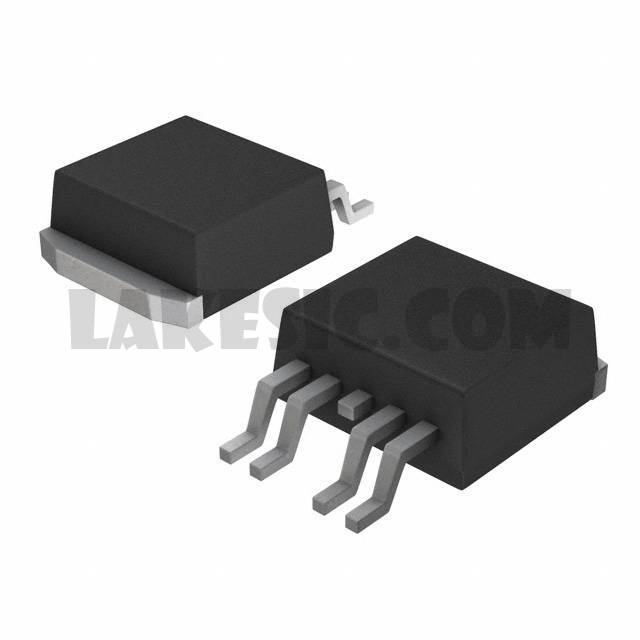

Package / CaseTO-263-5, D²Pak (4 Leads + Tab), TO-263BB

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 40V 75A (Tc) 272W (Tc) Surface Mount SOT-426

To learn about the specification of BUK714R1-40BT,118, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BUK714R1-40BT,118 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BUK714R1-40BT,118.
We are offering BUK714R1-40BT,118 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BUK714R1-40BT,118 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

BUK714R1-40BT

Standard Package

Manufacturer

Nexperia USA Inc.

Series

TrenchPLUS

Packaging

Cut Tape (CT)

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

40V

Current - Continuous Drain (Id) @ 25°C

75A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

4.1mOhm @ 50A, 10V

Vgs(th) (Max) @ Id

4V @ 1mA

Gate Charge (Qg) (Max) @ Vgs

83nC @ 10V

Vgs (Max)

±20V

Input Capacitance (Ciss) (Max) @ Vds

6808pF @ 25V

FET Feature

Temperature Sensing Diode

Power Dissipation (Max)

272W (Tc)

Operating Temperature

-55°C ~ 175°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

SOT-426

Package / Case

TO-263-5, D²Pak (4 Leads + Tab), TO-263BB
