BUK794R1-40BT,127

Part NumberBUK794R1-40BT,127

ManufacturerNXP USA Inc.

To learn about the specification of BUK794R1-40BT,127, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BUK794R1-40BT,127 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BUK794R1-40BT,127.
We are offering BUK794R1-40BT,127 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Standard Package	50
Manufacturer	NXP USA Inc.
Series	TrenchPLUS
Packaging	Tube
Part Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	75A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	4.1mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	83nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6808pF @ 25V
FET Feature	Temperature Sensing Diode
Power Dissipation (Max)	272W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole

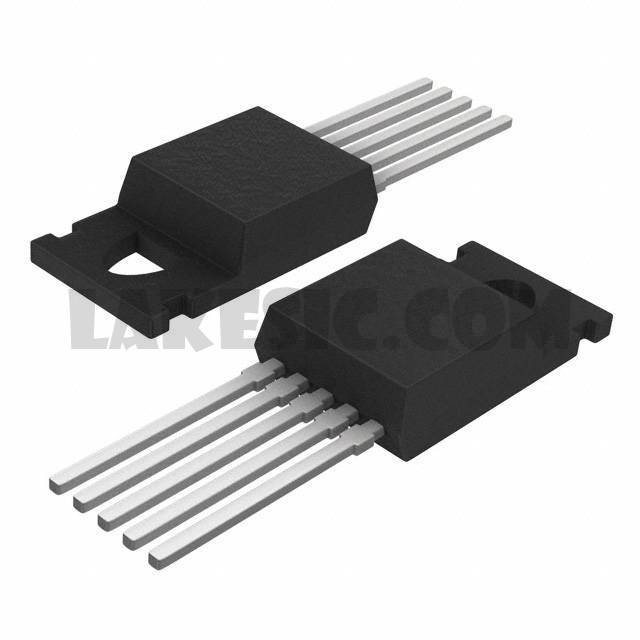

Supplier Device Package	TO-220-5
Package / Case	TO-220-5
