Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	BYM12-zzz, EGL41(A,B,C,D,F,G)
Standard Package	1
Manufacturer	Vishay Semiconductor Diodes Division
Series	SUPERECTIFIER®
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1V @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	50ns
Current - Reverse Leakage @ Vr	5µA @ 200V
Capacitance @ Vr, F	20pF @ 4V, 1MHz
Mounting Type	Surface Mount

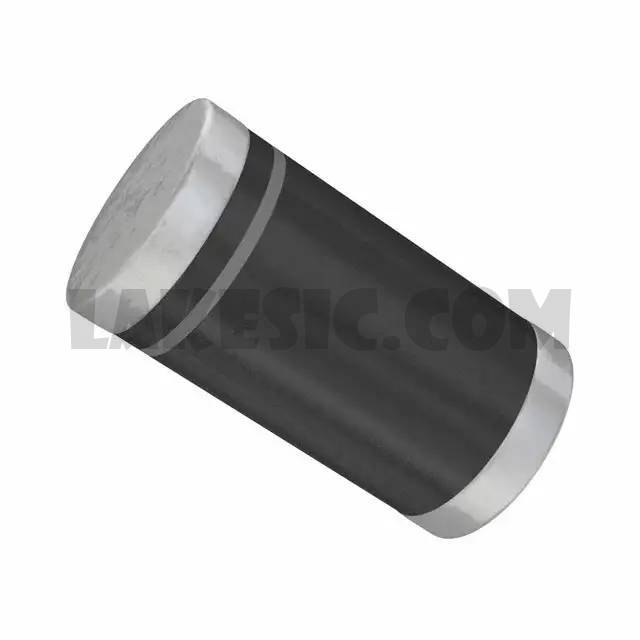

Package / Case	DO-213AB, MELF (Glass)
Supplier Device Package	DO-213AB
Operating Temperature - Junction	-65°C ~ 175°C
Base Part Number	BYM12-200
