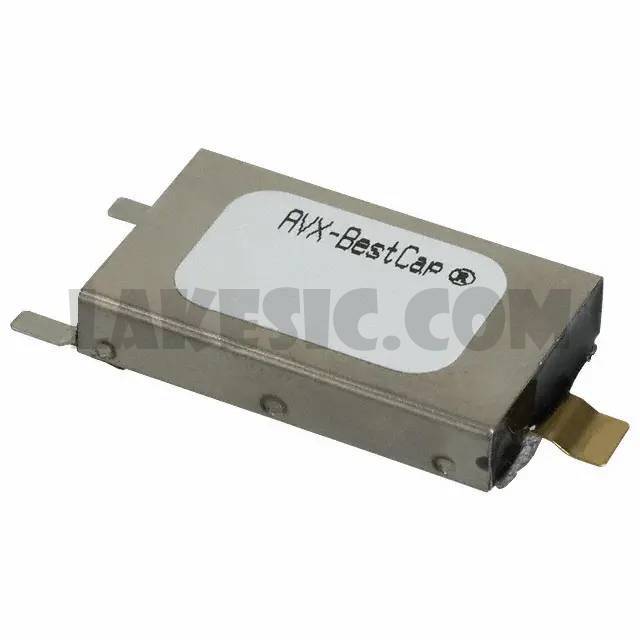

Categories	Capacitors / Electric Double Layer Capacitors (EDLC), Supercapacitors
Datasheet	BestCap Series
Standard Package	390
Manufacturer	AVX Corporation
Series	BestCap® BZ
Packaging	Bulk
Part Status	Active
Capacitance	50mF
Tolerance	-20%, +80%
Voltage - Rated	5.5V
ESR (Equivalent Series Resistance)	160mOhm
Lifetime @ Temp.	1000 Hrs @ 70°C
Termination	PC Pins
Mounting Type	Through Hole
Package / Case	BZ01, 3 Lead
Lead Spacing	-
Size / Dimension	1.102" L x 0.669" W (28.00mm x 17.00mm)
Height - Seated (Max)	0.138" (3.50mm)
Operating Temperature	-20°C ~ 70°C

BZ05FB682ZSB	AVX Corporation, 6.8mF (EDLC) Supercapacitor 15V BZ05, 3 Lead 500mOhm 1000 Hrs @ 70°C, BestCap® BZ	View
BZ02CA903ZAB	AVX Corporation, 90mF (EDLC) Supercapacitor 12V BZ02, 4 Lead 90mOhm 1000 Hrs @ 70°C, BestCap® BZ	View
BZ025A204ZAB	AVX Corporation, 200mF (EDLC) Supercapacitor 5.5V BZ02, 4 Lead 60mOhm 1000 Hrs @ 70°C, BestCap® BZ	View
BZ015A503ZLB	AVX Corporation, 50mF (EDLC) Supercapacitor 5.5V BZ01, 3 Lead 160mOhm 1000 Hrs @ 70°C, BestCap® BZ	View
BZ013A144ZSB	AVX Corporation, 140mF (EDLC) Supercapacitor 3.6V BZ01, 3 Lead 70mOhm 1000 Hrs @ 70°C, BestCap® BZ	View
BZ013A703ZSB	AVX Corporation, 70mF (EDLC) Supercapacitor 3.6V BZ01, 3 Lead 140mOhm 1000 Hrs @ 70°C, BestCap® BZ	View
BZ055B333ZSB	AVX Corporation, 33mF (EDLC) Supercapacitor 5.5V BZ05, 3 Lead 125mOhm 1000 Hrs @ 70°C, BestCap® BZ	View
BZ015B603ZSB	AVX Corporation, 60mF (EDLC) Supercapacitor 5.5V BZ01, 3 Lead 80mOhm 1000 Hrs @ 70°C, BestCap® BZ	View
BZ015A104ZSB	AVX Corporation, 100mF (EDLC) Supercapacitor 5.5V BZ01, 3 Lead 80mOhm 1000 Hrs @ 70°C, BestCap® BZ	View
BZ055A333ZSB	AVX Corporation, 33mF (EDLC) Supercapacitor 5.5V BZ05, 3 Lead 250mOhm 1000 Hrs @ 70°C, BestCap® BZ	View
BZ12GA124ZAB	AVX Corporation, 120mF (EDLC) Supercapacitor 16V BZ12, 4 Lead 160mOhm 1000 Hrs @ 70°C, BestCap® BZ	View
BZ113B104ZSB	AVX Corporation, 100mF (EDLC) Supercapacitor 3.6V BZ11, 3 Lead 100mOhm 1000 Hrs @ 70°C, BestCap® BZ	View

BZ015A503ZLB

Part NumberBZ015A503ZLB
