Categories	Discrete Semiconductor Products / Diodes - Zener - Single
Datasheet	BZT52-B Series
Standard Package	1
Manufacturer	Nexperia USA Inc.
Series	Automotive, AEC-Q101
Packaging	Cut Tape (CT)
Part Status	Active
Voltage - Zener (Nom) (Vz)	15V
Tolerance	±2%
Power - Max	590mW
Impedance (Max) (Zzt)	15 Ohms
Current - Reverse Leakage @ Vr	50nA @ 10.5V
Voltage - Forward (Vf) (Max) @ If	900mV @ 10mA
Operating Temperature	-55°C ~ 150°C (TA)
Mounting Type	Surface Mount

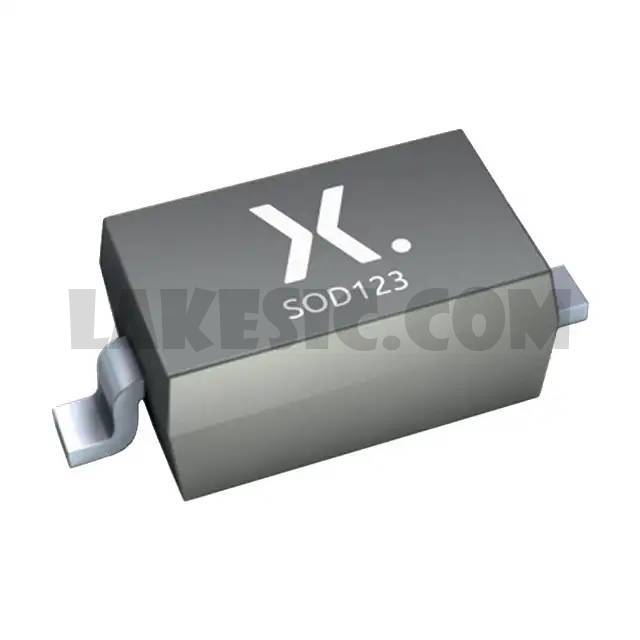

Package / Case	SOD-123
Supplier Device Package	SOD-123

BZT52-C4V3J	Nexperia USA Inc., Zener Diode 4.3V 350mW ±7% Surface Mount SOD-123, Automotive, AEC-Q101	View
BZT52-B5V6J	Nexperia USA Inc., Zener Diode 5.6V 590mW ±1.96% Surface Mount SOD-123, Automotive, AEC-Q101	View
BZT52-C16X	Nexperia USA Inc., Zener Diode 16.2V 350mW ±5.6% Surface Mount SOD-123, Automotive, AEC-Q101	View
BZT52-B2V4J	Nexperia USA Inc., Zener Diode 2.4V 590mW ±2.08% Surface Mount SOD-123, Automotive, AEC-Q101	View
BZT52-C4V7J	Nexperia USA Inc., Zener Diode 4.7V 350mW ±6.4% Surface Mount SOD-123, Automotive, AEC-Q101	View
BZT52-C16J	Nexperia USA Inc., Zener Diode 16.2V 350mW ±5.6% Surface Mount SOD-123, Automotive, AEC-Q101	View
BZT52-C6V2X	Nexperia USA Inc., Zener Diode 6.2V 350mW ±6.5% Surface Mount SOD-123, Automotive, AEC-Q101	View
BZT52-C12X	Nexperia USA Inc., Zener Diode 12.05V 350mW ±5.4% Surface Mount SOD-123, Automotive, AEC-Q101	View
BZT52-C8V2J	Nexperia USA Inc., Zener Diode 8.2V 350mW ±6.1% Surface Mount SOD-123, Automotive, AEC-Q101	View
BZT52-B6V2J	Nexperia USA Inc., Zener Diode 6.2V 590mW ±1.94% Surface Mount SOD-123, Automotive, AEC-Q101	View
BZT52-C4V7X	Nexperia USA Inc., Zener Diode 4.7V 350mW ±6.4% Surface Mount SOD-123, Automotive, AEC-Q101	View
BZT52-B10J	Nexperia USA Inc., Zener Diode 10V 590mW ±2% Surface Mount SOD-123, Automotive, AEC-Q101	View

BZT52-B15J

Part NumberBZT52-B15J
