Categories	Discrete Semiconductor Products / Diodes - Zener - Single
Datasheet	BZT52B15LP
Standard Package	10000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Voltage - Zener (Nom) (Vz)	15V
Tolerance	±2%
Power - Max	250mW
Impedance (Max) (Zzt)	15 Ohms
Current - Reverse Leakage @ Vr	50nA @ 10.5V
Voltage - Forward (Vf) (Max) @ If	900mV @ 10mA
Operating Temperature	-65°C ~ 150°C
Mounting Type	Surface Mount

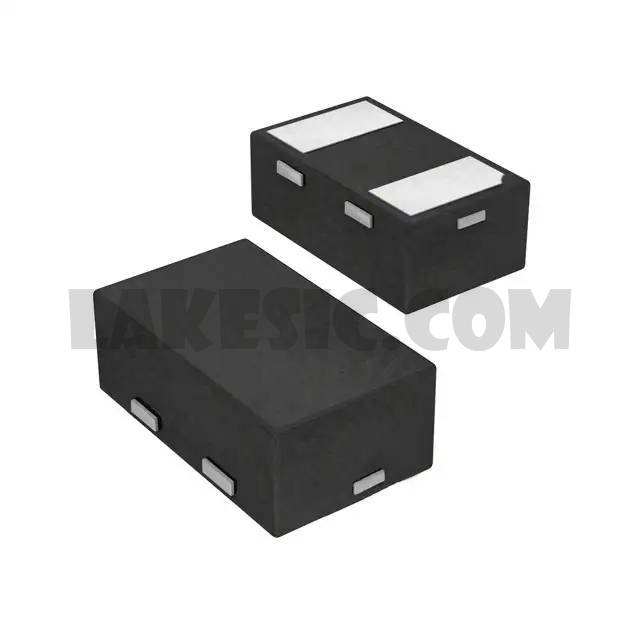

Package / Case	0402 (1006 Metric)
Supplier Device Package	2-DFN1006
Base Part Number	BZT52B15
