Categories	Discrete Semiconductor Products / Diodes - Zener - Single
Datasheet	BZT52C2V4 - BZT52C75
Standard Package	1
Manufacturer	Taiwan Semiconductor Corporation
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Voltage - Zener (Nom) (Vz)	5.1V
Tolerance	±5%
Power - Max	500mW
Impedance (Max) (Zzt)	60 Ohms
Current - Reverse Leakage @ Vr	1.8µA @ 2V
Voltage - Forward (Vf) (Max) @ If	1V @ 10mA
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount

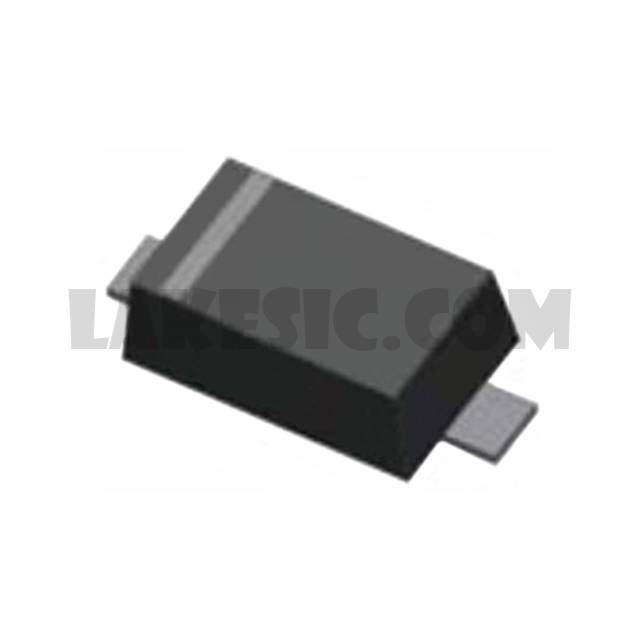

Package / Case	SOD-123F
Supplier Device Package	SOD-123F
