Categories	Discrete Semiconductor Products / Diodes - Zener - Single
Datasheet	BZV85 Series
Standard Package	1
Manufacturer	Nexperia USA Inc.
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Voltage - Zener (Nom) (Vz)	7.5V
Tolerance	±5%
Power - Max	1.3W
Impedance (Max) (Zzt)	3 Ohms
Current - Reverse Leakage @ Vr	1µA @ 4.5V
Voltage - Forward (Vf) (Max) @ If	1V @ 50mA
Operating Temperature	-65°C ~ 200°C
Mounting Type	Through Hole

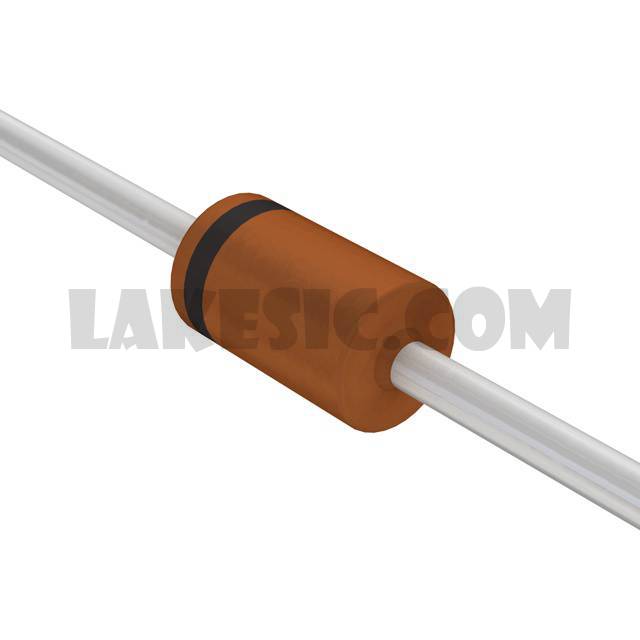

Package / Case	DO-204AL, DO-41, Axial
Supplier Device Package	DO-41
