Categories	Discrete Semiconductor Products / Diodes - Zener - Single
Datasheet	BZX585 Series Datasheet
Standard Package	3000
Manufacturer	Nexperia USA Inc.
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Voltage - Zener (Nom) (Vz)	13V
Tolerance	±2%
Power - Max	300mW
Impedance (Max) (Zzt)	10 Ohms
Current - Reverse Leakage @ Vr	100nA @ 8V
Voltage - Forward (Vf) (Max) @ If	1.1V @ 100mA
Operating Temperature	-65°C ~ 150°C
Mounting Type	Surface Mount

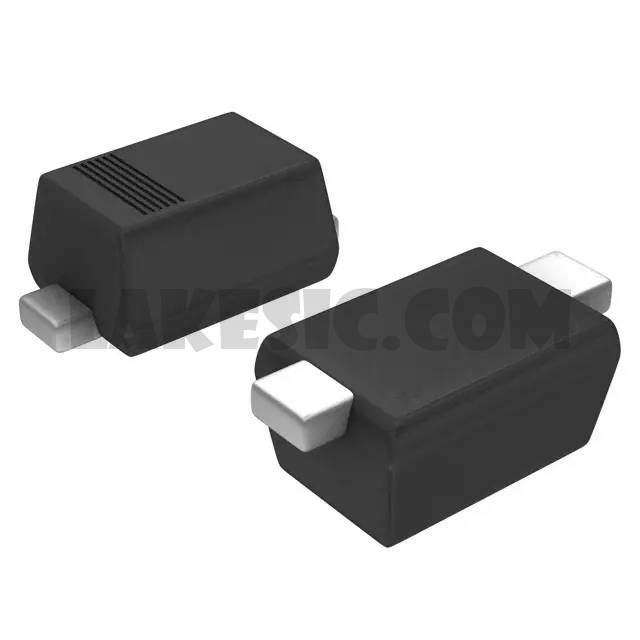

Package / Case	SC-79, SOD-523
Supplier Device Package	SOD-523
Base Part Number	BZX585B13
