Categories	Discrete Semiconductor Products / Diodes - Zener - Single
Datasheet	BZX84(B,C)xzxLT1G, SZBZX84(B,C)xzxLT1G
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Voltage - Zener (Nom) (Vz)	2.7V
Tolerance	±7%
Power - Max	225mW
Impedance (Max) (Zzt)	100 Ohms
Current - Reverse Leakage @ Vr	20µA @ 1V
Voltage - Forward (Vf) (Max) @ If	900mV @ 10mA
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount

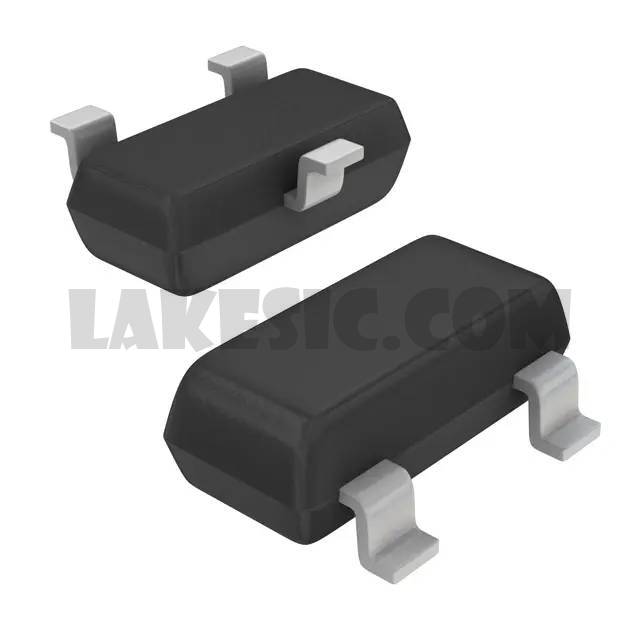

Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23-3 (TO-236)
Base Part Number	BZX84C2V7

SZBZX84C5V6LT1G	ON Semiconductor, Zener Diode 5.6V 225mW ±7% Surface Mount SOT-23-3 (TO-236), Automotive, AEC-Q101	View
SZBZX84C20ET1G	ON Semiconductor, Zener Diode 20V 225mW ±6% Surface Mount SOT-23-3 (TO-236), Automotive, AEC-Q101	View
SZBZX84C12LT1G	ON Semiconductor, Zener Diode 12V 250mW ±5% Surface Mount SOT-23-3 (TO-236), Automotive, AEC-Q101	View
SZBZX84C4V7LT1G	ON Semiconductor, Zener Diode 4.7V 225mW ±6% Surface Mount SOT-23-3 (TO-236), Automotive, AEC-Q101	View
SZBZX84C15ET3G	ON Semiconductor, Zener Diode 15V 225mW ±6% Surface Mount SOT-23-3 (TO-236), Automotive, AEC-Q101	View
SZBZX84C8V2LT3G	ON Semiconductor, Zener Diode 8.2V 225mW ±5% Surface Mount SOT-23-3 (TO-236), Automotive, AEC-Q101	View
SZBZX84C33ET1G	ON Semiconductor, Zener Diode 33V 225mW ±6% Surface Mount SOT-23-3 (TO-236), Automotive, AEC-Q101	View
SZBZX84B5V6LT1G	ON Semiconductor, Zener Diode 5.6V 225mW ±2% Surface Mount SOT-23-3 (TO-236), Automotive, AEC-Q101	View
BZX84C15LT3G	ON Semiconductor, Zener Diode 15V 225mW ±6% Surface Mount SOT-23-3 (TO-236),	View
BZX84C68LT1G	ON Semiconductor, Zener Diode 68V 225mW ±6% Surface Mount SOT-23-3 (TO-236),	View
BZX84C11LT1G	ON Semiconductor, Zener Diode 11V 225mW ±5% Surface Mount SOT-23-3 (TO-236),	View
SZBZX84C27LT1G	ON Semiconductor, Zener Diode 27V 225mW ±7% Surface Mount SOT-23-3 (TO-236), Automotive, AEC-Q101	View

BZX84C2V7LT1G

Part NumberBZX84C2V7LT1G
