Categories	Discrete Semiconductor Products / Diodes - Zener - Single
Datasheet	BZX84J Series
Standard Package	1
Manufacturer	Nexperia USA Inc.
Series	Automotive, AEC-Q101
Packaging	Cut Tape (CT)
Part Status	Active
Voltage - Zener (Nom) (Vz)	3.9V
Tolerance	±5%
Power - Max	550mW
Impedance (Max) (Zzt)	90 Ohms
Current - Reverse Leakage @ Vr	3µA @ 1V
Voltage - Forward (Vf) (Max) @ If	1.1V @ 100mA
Operating Temperature	-65°C ~ 150°C
Mounting Type	Surface Mount

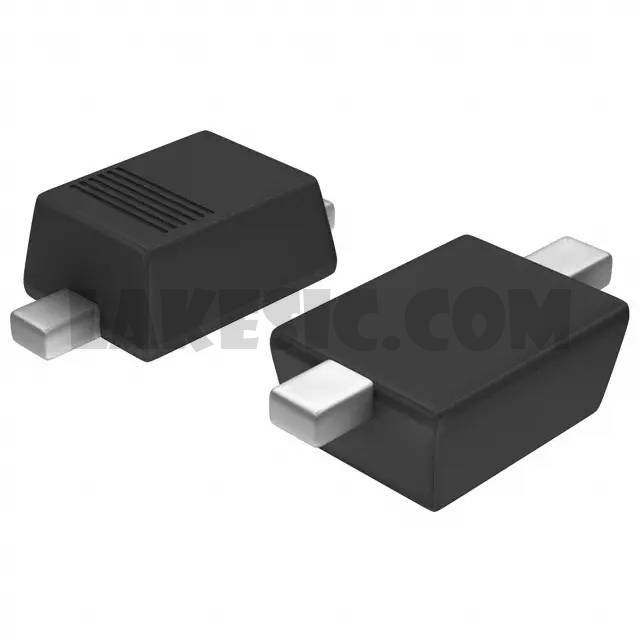

Package / Case	SC-90, SOD-323F
Supplier Device Package	SOD-323F
Base Part Number	BZX84JC3V9
