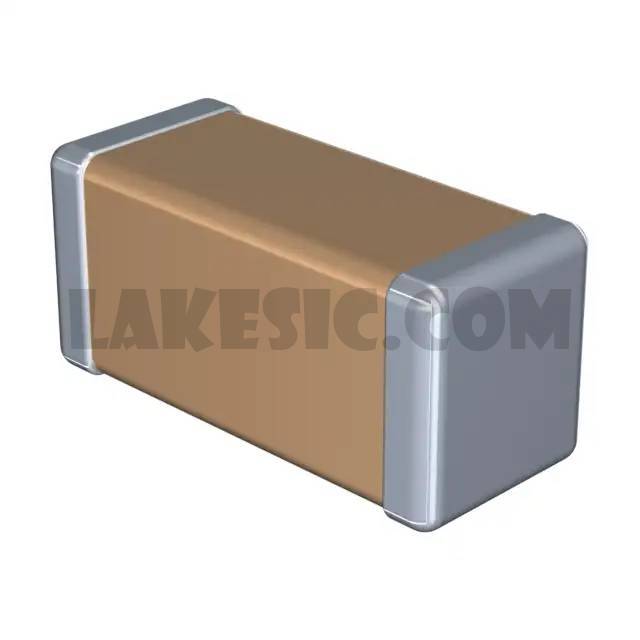

Categories	Capacitors / Ceramic Capacitors
Datasheet	High Voltage X7R Dielectric
Standard Package	1000
Manufacturer	KEMET
Series	SMD Comm X7R HV
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	0.1µF
Tolerance	±10%
Voltage - Rated	630V
Temperature Coefficient	X7R
Operating Temperature	-55°C ~ 125°C
Features	Low ESL, High Voltage
Ratings	-
Applications	General Purpose
Failure Rate	-
Mounting Type	Surface Mount, MLCC
Package / Case	1808 (4520 Metric)
Size / Dimension	0.185" L x 0.079" W (4.70mm x 2.00mm)
Height - Seated (Max)	-
Thickness (Max)	0.085" (2.15mm)
Lead Spacing	-
Lead Style	-

C1206C103JDRAC7800	KEMET, 10000pF ±5% 1000V (1kV) Ceramic Capacitor X7R 1206 (3216 Metric), SMD Comm X7R HV	View
C2220C153KFRACTU	KEMET, 0.015µF ±10% 1500V (1.5kV) Ceramic Capacitor X7R 2220 (5750 Metric), SMD Comm X7R HV	View
C2220C474KCRAC7800	KEMET, 0.47µF ±10% 500V Ceramic Capacitor X7R 2220 (5750 Metric), SMD Comm X7R HV	View
C1808C472KGRAC7800	KEMET, 4700pF ±10% 2000V (2kV) Ceramic Capacitor X7R 1808 (4520 Metric), SMD Comm X7R HV	View
C0805C471KDRACTU	KEMET, 470pF ±10% 1000V (1kV) Ceramic Capacitor X7R 0805 (2012 Metric), SMD Comm X7R HV	View
C1808C102KFRAC7800	KEMET, 1000pF ±10% 1500V (1.5kV) Ceramic Capacitor X7R 1808 (4520 Metric), SMD Comm X7R HV	View
C1206C221KGRAC7800	KEMET, 220pF ±10% 2000V (2kV) Ceramic Capacitor X7R 1206 (3216 Metric), SMD Comm X7R HV	View
C2225C153KHRACTU	KEMET, 0.015µF ±10% 3000V (3kV) Ceramic Capacitor X7R 2225 (5763 Metric), SMD Comm X7R HV	View
C1210C823KBRACTU	KEMET, 0.082µF ±10% 630V Ceramic Capacitor X7R 1210 (3225 Metric), SMD Comm X7R HV	View
C1210C562KDRACTU	KEMET, 5600pF ±10% 1000V (1kV) Ceramic Capacitor X7R 1210 (3225 Metric), SMD Comm X7R HV	View
C1825C154KCRAC7800	KEMET, 0.15µF ±10% 500V Ceramic Capacitor X7R 1825 (4564 Metric), SMD Comm X7R HV	View
C1210C681KGRACTU	KEMET, 680pF ±10% 2000V (2kV) Ceramic Capacitor X7R 1210 (3225 Metric), SMD Comm X7R HV	View

C1808C104KBRACTU

Part NumberC1808C104KBRACTU
