C3D1P7060Q

C3D1P7060Q

Part NumberC3D1P7060Q

ManufacturerCree/Wolfspeed

DescriptionDIODE SCHOTTKY 600V 1.7A 10PQFN

DatasheetC3D1P7060Q

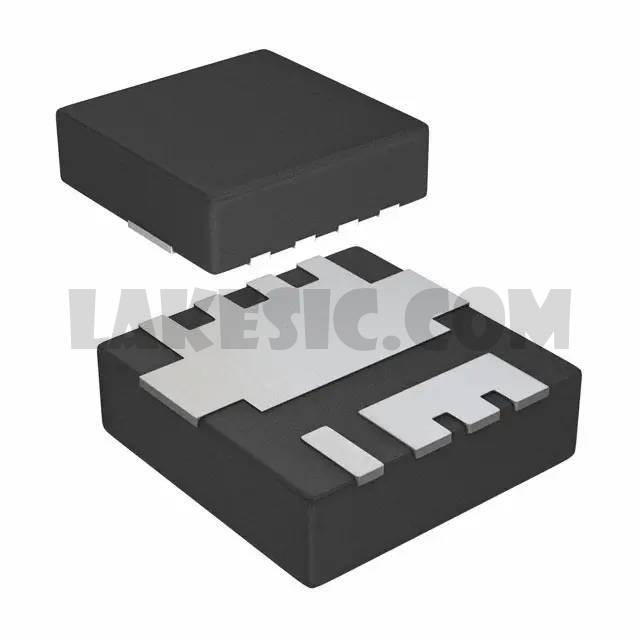

Package / Case10-PowerTQFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Silicon Carbide Schottky 600V 9.7A (DC) Surface Mount 10-Power QFN (3.3x3.3)

To learn about the specification of C3D1P7060Q, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add C3D1P7060Q with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of C3D1P7060Q.
We are offering C3D1P7060Q for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

C3D1P7060Q - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	C3D1P7060Q
Standard Package	1
Manufacturer	Cree/Wolfspeed
Series	Z-Rec®
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max)	600V
Current - Average Rectified (Io)	9.7A (DC)
Voltage - Forward (Vf) (Max) @ If	1.7V @ 1.7A
Speed	No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr)	0ns
Current - Reverse Leakage @ Vr	50µA @ 600V
Capacitance @ Vr, F	100pF @ 0V, 1MHz
Mounting Type	Surface Mount
Package / Case	10-PowerTQFN
Supplier Device Package	10-Power QFN (3.3x3.3)
Operating Temperature - Junction	-55°C ~ 160°C
Base Part Number	C3D1P7060
