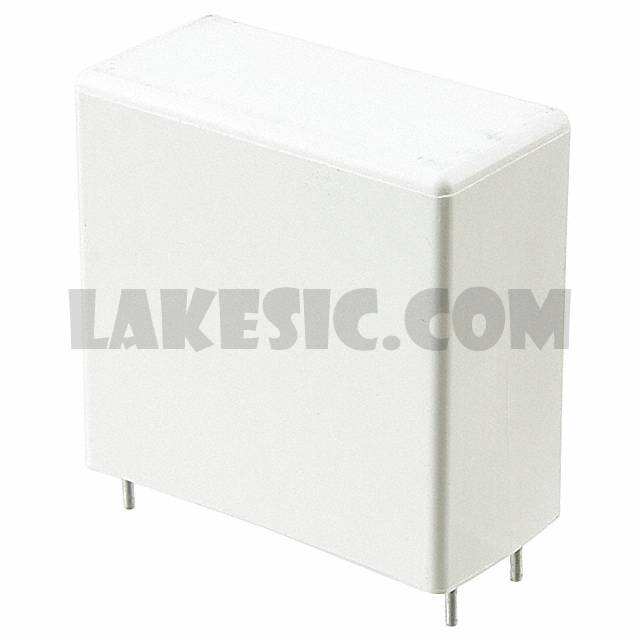

Categories	Capacitors / Film Capacitors
Datasheet	C4AE Series
Standard Package	58
Manufacturer	KEMET
Series	C4AE
Packaging	Bulk
Part Status	Active
Capacitance	12µF
Tolerance	±5%
Voltage Rating - AC	-
Voltage Rating - DC	900V
Dielectric Material	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance)	6.4 mOhms
Operating Temperature	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.634" L x 0.787" W (41.50mm x 20.00mm)
Height - Seated (Max)	1.583" (40.20mm)
Termination	PC Pins
Lead Spacing	1.476" (37.50mm)
Applications	DC Link, DC Filtering; High Frequency, Switching
Ratings	-
Features	-

C4AEJBW5200A3JJ	KEMET, 20µF Film Capacitor 700V Polypropylene (PP), Metallized Radial - 4 Leads, C4AE	View
C4AEGBU4450A1WJ	KEMET, 4.5µF Film Capacitor 450V Polypropylene (PP), Metallized Radial, C4AE	View
C4AEOBW5300A3MJ	KEMET, 30µF Film Capacitor 900V Polypropylene (PP), Metallized Radial - 4 Leads, C4AE	View
C4AEJBU4500A1YJ	KEMET, 5µF Film Capacitor 700V Polypropylene (PP), Metallized Radial, C4AE	View
C4AEGBU5125A11J	KEMET, 12.5µF Film Capacitor 450V Polypropylene (PP), Metallized Radial, C4AE	View
C4AEJBW5150A3FJ	KEMET, 15µF Film Capacitor 700V Polypropylene (PP), Metallized Radial, C4AE	View
C4AEQBW5120A3LJ	KEMET, 12µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial - 4 Leads, C4AE	View
C4AEQBU4330A11J	KEMET, 3.3µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial, C4AE	View
C4AEHBW5400A3LJ	KEMET, 40µF Film Capacitor 600V Polypropylene (PP), Metallized Radial - 4 Leads, C4AE	View
C4AEGBU4680A1XJ	KEMET, 6.8µF Film Capacitor 450V Polypropylene (PP), Metallized Radial, C4AE	View
C4AEJBW5450A3MJ	KEMET, 45µF Film Capacitor 700V Polypropylene (PP), Metallized Radial - 4 Leads, C4AE	View
C4AEGBW5500A3LJ	KEMET, 50µF Film Capacitor 450V Polypropylene (PP), Metallized Radial - 4 Leads, C4AE	View

C4AEOBW5120A3FJ

Part NumberC4AEOBW5120A3FJ
