Categories	Capacitors / Film Capacitors
Datasheet	CB Series-PEN
Standard Package	1200
Manufacturer	AVX Corporation
Series	CB
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	10000pF
Tolerance	±5%
Voltage Rating - AC	160V
Voltage Rating - DC	250V
Dielectric Material	Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked
Operating Temperature	-55°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	1812 (4532 Metric)
Size / Dimension	0.185" L x 0.126" W (4.70mm x 3.20mm)
Height - Seated (Max)	0.079" (2.00mm)
Termination	Solder Pads
Lead Spacing	-
Applications	General Purpose
Ratings	-
Features	-

CBC3225T330MR	Taiyo Yuden, 33µH Unshielded Wirewound Inductor 570mA 533mOhm Max 1210 (3225 Metric), CB, C Type	View
CB2016T101KV	Taiyo Yuden, 100µH Unshielded Wirewound Inductor 90mA 5.85Ohm Max 0806 (2016 Metric), CB	View
CBC3225T821KRV	Taiyo Yuden, 820µH Unshielded Wirewound Inductor 80mA 15.6Ohm Max 1210 (3225 Metric), CB, C Type	View
CBC3225T1R5MR	Taiyo Yuden, 1.5µH Unshielded Wirewound Inductor 1.31A 78mOhm Max 1210 (3225 Metric), CB, C Type	View
CBL2012T4R7M	Taiyo Yuden, 4.7µH Unshielded Wirewound Inductor 490mA 858mOhm Max 0805 (2012 Metric), CB, L Type	View
CBC3225T100KRV	Taiyo Yuden, 10µH Unshielded Wirewound Inductor 720mA 172.9mOhm Max 1210 (3225 Metric), CB, C Type	View
CBC3225T220MRV	Taiyo Yuden, 22µH Unshielded Wirewound Inductor 500mA 351mOhm Max 1210 (3225 Metric), CB, C Type	View
CBC3225T150KR	Taiyo Yuden, 15µH Unshielded Wirewound Inductor 850mA 253.5mOhm Max 1210 (3225 Metric), CB, C Type	View
CBC3225T150KRV	Taiyo Yuden, 15µH Unshielded Wirewound Inductor 590mA 253.5mOhm Max 1210 (3225 Metric), CB, C Type	View
CB2518T4R7MR	Taiyo Yuden, 4.7µH Unshielded Wirewound Inductor 1.2A 130mOhm Max 1007 (2518 Metric), CB	View
CBC3225T4R7MRV	Taiyo Yuden, 4.7µH Unshielded Wirewound Inductor 830mA 130mOhm Max 1210 (3225 Metric), CB, C Type	View
CBC2518T100M	Taiyo Yuden, 10µH Unshielded Wirewound Inductor 680mA 468mOhm Max 1007 (2518 Metric), CB, C Type	View

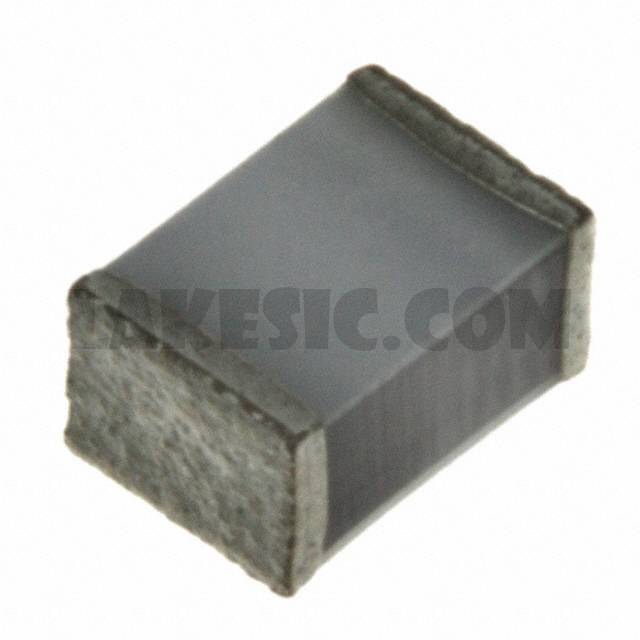

CB037G0103JBA
