Categories	Capacitors / Film Capacitors
Datasheet	CB Series Datasheet
Standard Package	2300
Manufacturer	AVX Corporation
Series	CB
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	0.68µF
Tolerance	±5%
Voltage Rating - AC	40V
Voltage Rating - DC	63V
Dielectric Material	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Operating Temperature	-55°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	2220 (5750 Metric)
Size / Dimension	0.228" L x 0.197" W (5.80mm x 5.00mm)
Height - Seated (Max)	0.157" (4.00mm)
Termination	Solder Pads
Lead Spacing	-
Applications	General Purpose
Ratings	-
Features	-

CBC3225T330KRV	Taiyo Yuden, 33µH Unshielded Wirewound Inductor 400mA 533mOhm Max 1210 (3225 Metric), CB, C Type	View
CB2016T100M	Taiyo Yuden, 10µH Unshielded Wirewound Inductor 520mA 650mOhm Max 0806 (2016 Metric), CB	View
CB2518T2R2M	Taiyo Yuden, 2.2µH Unshielded Wirewound Inductor 1.3A 117mOhm Max 1007 (2518 Metric), CB	View
CBC3225T220KR	Taiyo Yuden, 22µH Unshielded Wirewound Inductor 780mA 351mOhm Max 1210 (3225 Metric), CB, C Type	View
CB2012T4R7M	Taiyo Yuden, 4.7µH Unshielded Wirewound Inductor 580mA 520mOhm Max 0805 (2012 Metric), CB	View
CB2016T2R2MV	Taiyo Yuden, 2.2µH Unshielded Wirewound Inductor 600mA 169mOhm Max 0806 (2016 Metric), CB	View
CBC3225T470KR	Taiyo Yuden, 47µH Unshielded Wirewound Inductor 480mA 871mOhm Max 1210 (3225 Metric), CB, C Type	View
CB2012T220K	Taiyo Yuden, 22µH Unshielded Wirewound Inductor 280mA 2.21Ohm Max 0805 (2012 Metric), CB	View
CBC3225T1R5MRV	Taiyo Yuden, 1.5µH Unshielded Wirewound Inductor 1A 78mOhm Max 1210 (3225 Metric), CB, C Type	View
CBC2518T680K	Taiyo Yuden, 68µH Unshielded Wirewound Inductor 200mA 3.64Ohm Max 1007 (2518 Metric), CB, C Type	View
CBC3225T470MR	Taiyo Yuden, 47µH Unshielded Wirewound Inductor 480mA 871mOhm Max 1210 (3225 Metric), CB, C Type	View
CB2518T2R2M	Taiyo Yuden, 2.2µH Unshielded Wirewound Inductor 1.3A 117mOhm Max 1007 (2518 Metric), CB	View

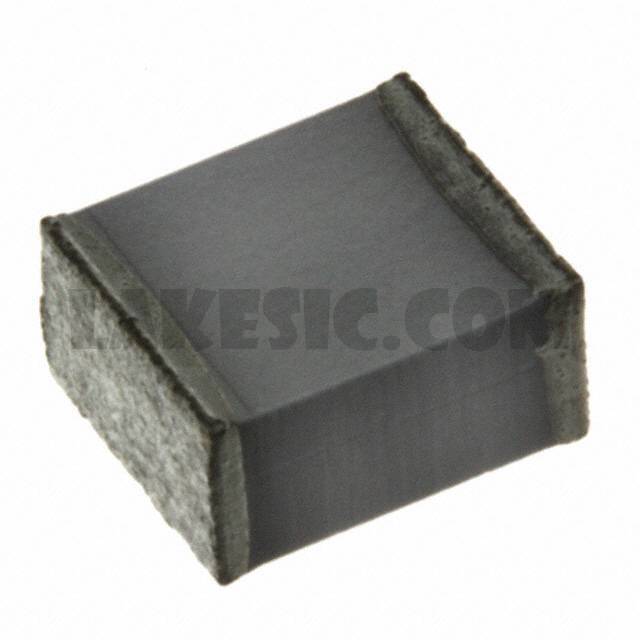

CB042D0684JBC

Part NumberCB042D0684JBC
