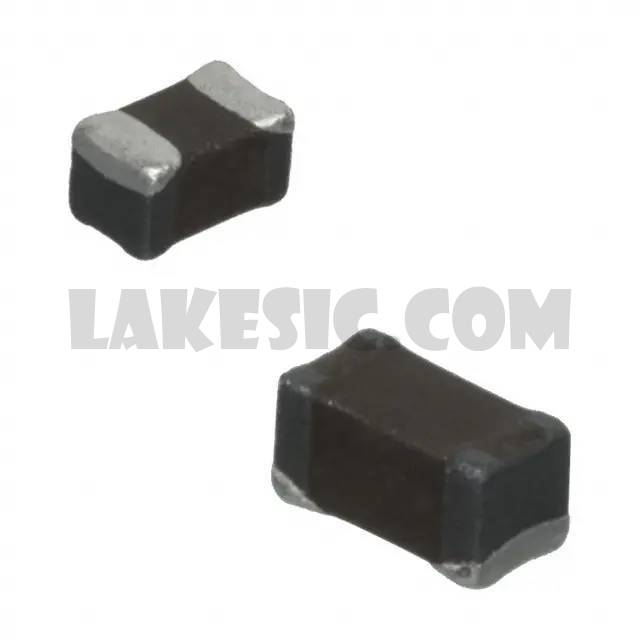

CBMF1608T4R7M


CBMF1608T4R7M

Part NumberCBMF1608T4R7M

Manufacturer

Description

Datasheet

Package / Case0603 (1608 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

CBMF1608T4R7M - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package3000
ManufacturerTaiyo Yuden
SeriesCB, MF Type
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance4.7µH
Tolerance±20%
Current Rating (Amps)470mA
Current - Saturation145mA
ShieldingUnshielded
DC Resistance (DCR)312mOhm Max
Q @ Freq-
Frequency - Self Resonant45MHz
Ratings-
Operating Temperature-40°C ~ 105°C
Inductance Frequency - Test7.96MHz
Mounting TypeSurface Mount
Package / Case0603 (1608 Metric)
Supplier Device Package0603 (1608 Metric)
Size / Dimension0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max)0.039" (1.00mm)
