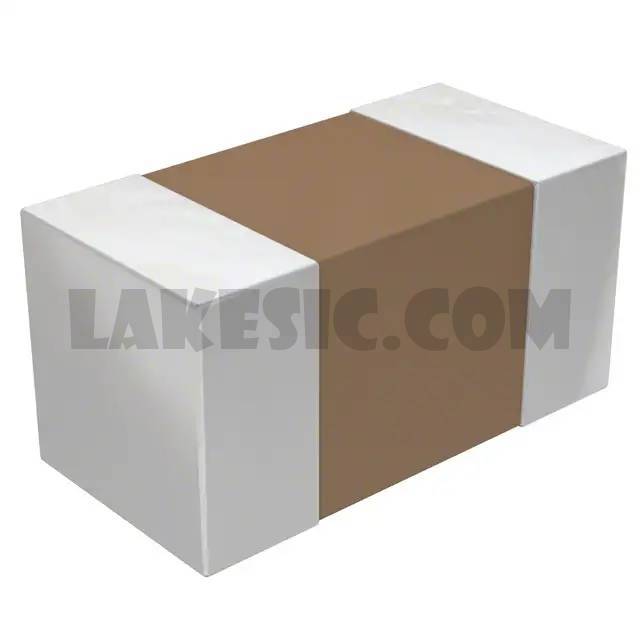

Categories	Capacitors / Ceramic Capacitors
Datasheet	HiQ-CBR Series, C0G, Low ESR
Standard Package	1
Manufacturer	KEMET
Series	CBR-SMD RF C0G
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	1pF
Tolerance	±0.05pF
Voltage - Rated	500V
Temperature Coefficient	C0G, NP0
Operating Temperature	-55°C ~ 125°C
Features	High Q, Low Loss, Ultra Low ESR
Ratings	-
Applications	RF, Microwave, High Frequency
Failure Rate	-
Mounting Type	Surface Mount, MLCC
Package / Case	0805 (2012 Metric)
Size / Dimension	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max)	-
Thickness (Max)	0.037" (0.95mm)
Lead Spacing	-
Lead Style	-

CBR08C809CAGAC	KEMET, 8pF ±0.25pF 250V Ceramic Capacitor C0G, NP0 0805 (2012 Metric), CBR-SMD RF C0G	View
CBR08C709CAGAC	KEMET, 7pF ±0.25pF 250V Ceramic Capacitor C0G, NP0 0805 (2012 Metric), CBR-SMD RF C0G	View
CBR06C100FAGAC	KEMET, 10pF ±1% 250V Ceramic Capacitor C0G, NP0 0603 (1608 Metric), CBR-SMD RF C0G	View
CBR02C829B3GAC	KEMET, 8.2pF ±0.1pF 25V Ceramic Capacitor C0G, NP0 0201 (0603 Metric), CBR-SMD RF C0G	View
CBR06C209BAGAC	KEMET, 2pF ±0.1pF 250V Ceramic Capacitor C0G, NP0 0603 (1608 Metric), CBR-SMD RF C0G	View
CBR06C708BAGAC	KEMET, 0.7pF ±0.1pF 250V Ceramic Capacitor C0G, NP0 0603 (1608 Metric), CBR-SMD RF C0G	View
CBR04C329B2GAC	KEMET, 3.2pF ±0.1pF 200V Ceramic Capacitor C0G, NP0 0402 (1005 Metric), CBR-SMD RF C0G	View
CBR04C180F2GAC	KEMET, 18pF ±1% 200V Ceramic Capacitor C0G, NP0 0402 (1005 Metric), CBR-SMD RF C0G	View
CBR06C949BAGAC	KEMET, 9.4pF ±0.1pF 250V Ceramic Capacitor C0G, NP0 0603 (1608 Metric), CBR-SMD RF C0G	View
CBR04C159C5GAC	KEMET, 1.5pF ±0.25pF 50V Ceramic Capacitor C0G, NP0 0402 (1005 Metric), CBR-SMD RF C0G	View
CBR06C649B5GAC	KEMET, 6.4pF ±0.1pF 50V Ceramic Capacitor C0G, NP0 0603 (1608 Metric), CBR-SMD RF C0G	View
CBR06C180JAGAC	KEMET, 18pF ±5% 250V Ceramic Capacitor C0G, NP0 0603 (1608 Metric), CBR-SMD RF C0G	View

CBR08C109ACGAC

Part NumberCBR08C109ACGAC
