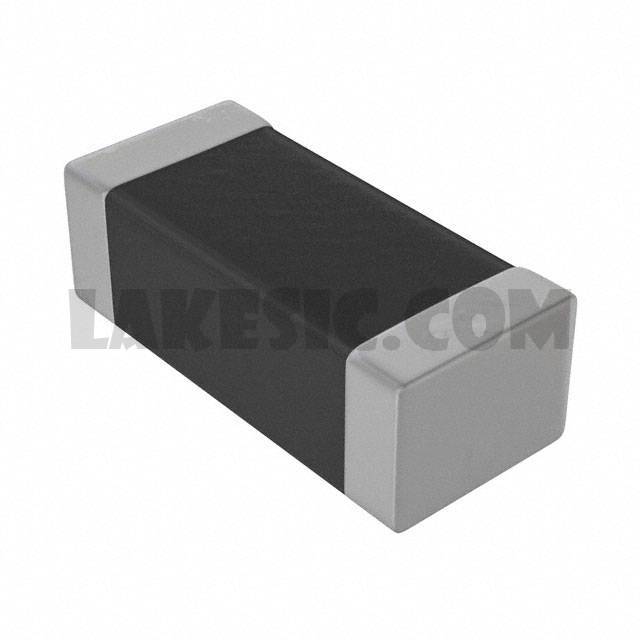

Categories	Capacitors / Ceramic Capacitors
Datasheet	CC Series, NPO/X7R, 1KV to 3KV
Standard Package	1
Manufacturer	Yageo
Series	CC
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	1500pF
Tolerance	±10%
Voltage - Rated	2000V (2kV)
Temperature Coefficient	X7R
Operating Temperature	-55°C ~ 125°C
Features	High Voltage
Ratings	-
Applications	General Purpose
Failure Rate	-
Mounting Type	Surface Mount, MLCC
Package / Case	1808 (4520 Metric)
Size / Dimension	0.177" L x 0.079" W (4.50mm x 2.00mm)
Height - Seated (Max)	-
Thickness (Max)	0.059" (1.50mm)
Lead Spacing	-
Lead Style	-

CC0201CRNPO9BN2R7	Yageo, 2.7pF ±0.25pF 50V Ceramic Capacitor C0G, NP0 0201 (0603 Metric), CC	View
CC0603FRNPO9BN150	Yageo, 15pF ±1% 50V Ceramic Capacitor C0G, NP0 0603 (1608 Metric), CC	View
CC0402JRNPO9BN200	Yageo, 20pF ±5% 50V Ceramic Capacitor C0G, NP0 0402 (1005 Metric), CC	View
CC0402JRNPO8BN221	Yageo, 220pF ±5% 25V Ceramic Capacitor C0G, NP0 0402 (1005 Metric), CC	View
CC0402CRNPO9BN1R0	Yageo, 1pF ±0.25pF 50V Ceramic Capacitor C0G, NP0 0402 (1005 Metric), CC	View
CC0201CRNPO9BN1R5	Yageo, 1.5pF ±0.25pF 50V Ceramic Capacitor C0G, NP0 0201 (0603 Metric), CC	View
CC0402CRNPO9BN8R2	Yageo, 8.2pF ±0.25pF 50V Ceramic Capacitor C0G, NP0 0402 (1005 Metric), CC	View
CC0805CRNPO9BN4R7	Yageo, 4.7pF ±0.25pF 50V Ceramic Capacitor C0G, NP0 0805 (2012 Metric), CC	View
CC1206ZRY5V8BB225	Yageo, 2.2µF -20%, +80% 25V Ceramic Capacitor Y5V (F) 1206 (3216 Metric), CC	View
CC0805KKX5R8BB225	Yageo, 2.2µF ±10% 25V Ceramic Capacitor X5R 0805 (2012 Metric), CC	View
CC0805JRNPO0BN820	Yageo, 82pF ±5% 100V Ceramic Capacitor C0G, NP0 0805 (2012 Metric), CC	View
CC0805KKX7R8BB334	Yageo, 0.33µF ±10% 25V Ceramic Capacitor X7R 0805 (2012 Metric), CC	View

CC1808KKX7RDBB152

Part NumberCC1808KKX7RDBB152
