Categories	Capacitors / Ceramic Capacitors
Datasheet	CC Series, NPO/X7R, 1KV to 3KV
Standard Package	2000
Manufacturer	Yageo
Series	CC
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	470pF
Tolerance	±10%
Voltage - Rated	2000V (2kV)
Temperature Coefficient	X7R
Operating Temperature	-55°C ~ 125°C
Features	High Voltage
Ratings	-
Applications	General Purpose
Failure Rate	-

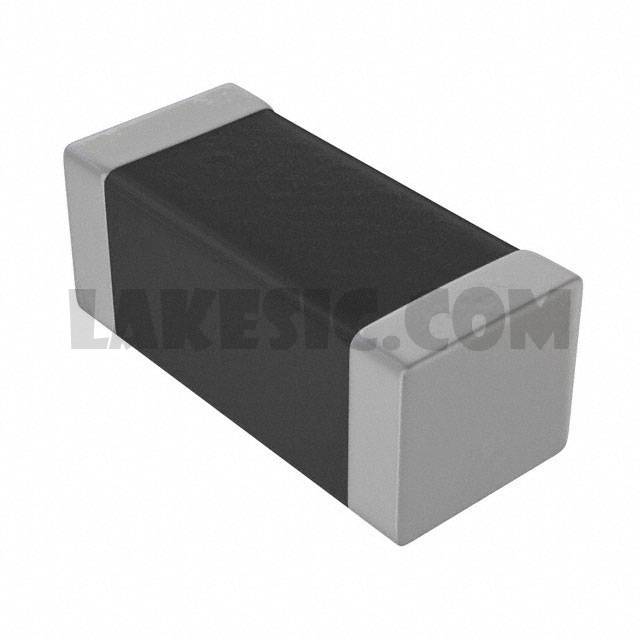

Mounting Type	Surface Mount, MLCC
Package / Case	1808 (4520 Metric)
Size / Dimension	0.177" L x 0.079" W (4.50mm x 2.00mm)
Height - Seated (Max)	-
Thickness (Max)	0.071" (1.80mm)
Lead Spacing	-
Lead Style	-

CC0805JKNPO8BN272	Yageo, 2700pF ±5% 25V Ceramic Capacitor C0G, NP0 0805 (2012 Metric), CC	View
CC0805JRNPO9BN120	Yageo, 12pF ±5% 50V Ceramic Capacitor C0G, NP0 0805 (2012 Metric), CC	View
CC0805KKX5R5BB225	Yageo, 2.2µF ±10% 6.3V Ceramic Capacitor X5R 0805 (2012 Metric), CC	View
CC0603CRNPO9BN9R1	Yageo, 9.1pF ±0.25pF 50V Ceramic Capacitor C0G, NP0 0603 (1608 Metric), CC	View
CC0402JRNPO9BN100	Yageo, 10pF ±5% 50V Ceramic Capacitor C0G, NP0 0402 (1005 Metric), CC	View
CC0603JRNPO9BN560	Yageo, 56pF ±5% 50V Ceramic Capacitor C0G, NP0 0603 (1608 Metric), CC	View
CC0402GRNPO9BN560	Yageo, 56pF ±2% 50V Ceramic Capacitor C0G, NP0 0402 (1005 Metric), CC	View
CC0805JRX7R9BB102	Yageo, 1000pF ±5% 50V Ceramic Capacitor X7R 0805 (2012 Metric), CC	View
CC0603ZRY5V9BB224	Yageo, 0.22µF -20%, +80% 50V Ceramic Capacitor Y5V (F) 0603 (1608 Metric), CC	View
CC0805JRX7R9BB822	Yageo, 8200pF ±5% 50V Ceramic Capacitor X7R 0805 (2012 Metric), CC	View
CC0603JRNPO9BN160	Yageo, 16pF ±5% 50V Ceramic Capacitor C0G, NP0 0603 (1608 Metric), CC	View
CC0805JRNPOYBN220	Yageo, 22pF ±5% 250V Ceramic Capacitor C0G, NP0 0805 (2012 Metric), CC	View

CC1808KKX7RDBB471

Part NumberCC1808KKX7RDBB471
