Categories	Capacitors / Ceramic Capacitors
Datasheet	CC Series, NPO/X7R, 1KV to 3KV
Standard Package	1
Manufacturer	Yageo
Series	CC
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	1500pF
Tolerance	±10%
Voltage - Rated	3000V (3kV)
Temperature Coefficient	X7R
Operating Temperature	-55°C ~ 125°C
Features	High Voltage
Ratings	-
Applications	General Purpose
Failure Rate	-

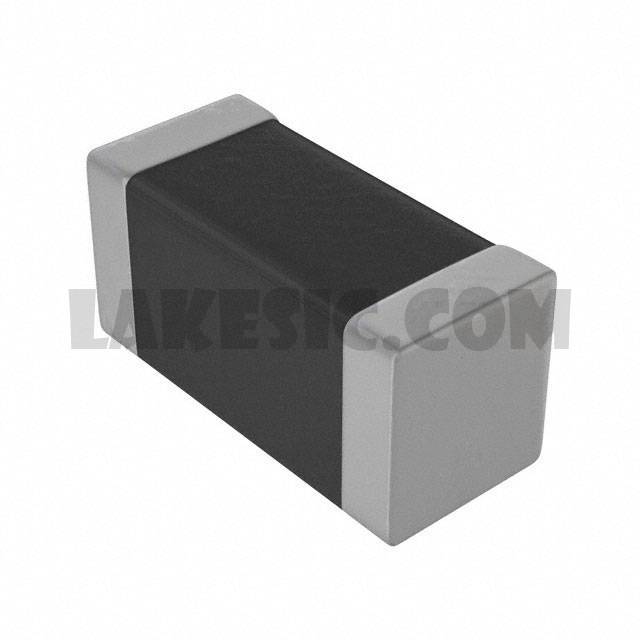

Mounting Type	Surface Mount, MLCC
Package / Case	1808 (4520 Metric)
Size / Dimension	0.177" L x 0.079" W (4.50mm x 2.00mm)
Height - Seated (Max)	-
Thickness (Max)	0.087" (2.20mm)
Lead Spacing	-
Lead Style	-
