Categories	Filters / Common Mode Chokes
Datasheet	CC1812C513R-10 Drawing
Standard Package	2000
Manufacturer	Laird-Signal Integrity Products
Series	CC
Packaging	Tape & Reel (TR)
Part Status	Active
Filter Type	Signal Line
Number of Lines	2
Impedance @ Frequency	3.5 kOhms @ 40MHz
Inductance @ Frequency	51µH @ 100kHz
Current Rating (Max)	200mA
DC Resistance (DCR) (Max)	500mOhm
Voltage Rating - DC	80V
Voltage Rating - AC	42V
Operating Temperature	-40°C ~ 125°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Surface Mount
Size / Dimension	0.205" L x 0.138" W (5.20mm x 3.50mm)
Height (Max)	0.140" (3.55mm)
Package / Case	Horizontal, 4 Flat Lead

CC0201GRNPO9BN100	Yageo, 10pF ±2% 50V Ceramic Capacitor C0G, NP0 0201 (0603 Metric), CC	View
CC0402BRNPO9BN5R0	Yageo, 5pF ±0.1pF 50V Ceramic Capacitor C0G, NP0 0402 (1005 Metric), CC	View
CC0402BRNPO9BN2R2	Yageo, 2.2pF ±0.1pF 50V Ceramic Capacitor C0G, NP0 0402 (1005 Metric), CC	View
CC0603CRNPO9BN7R5	Yageo, 7.5pF ±0.25pF 50V Ceramic Capacitor C0G, NP0 0603 (1608 Metric), CC	View
CC0603CRNPO9BN1R0	Yageo, 1pF ±0.25pF 50V Ceramic Capacitor C0G, NP0 0603 (1608 Metric), CC	View
CC0201JRNPO8BN220	Yageo, 22pF ±5% 25V Ceramic Capacitor C0G, NP0 0201 (0603 Metric), CC	View
CC0201BRNPO9BN3R9	Yageo, 3.9pF ±0.1pF 50V Ceramic Capacitor C0G, NP0 0201 (0603 Metric), CC	View
CC0603JRNPO7BN221	Yageo, 220pF ±5% 16V Ceramic Capacitor C0G, NP0 0603 (1608 Metric), CC	View
CC0805BRNPO9BN4R7	Yageo, 4.7pF ±0.1pF 50V Ceramic Capacitor C0G, NP0 0805 (2012 Metric), CC	View
CC0201KRX5R5BB333	Yageo, 0.033µF ±10% 6.3V Ceramic Capacitor X5R 0201 (0603 Metric), CC	View
CC0201BRNPO8BN2R2	Yageo, 2.2pF ±0.1pF 25V Ceramic Capacitor C0G, NP0 0201 (0603 Metric), CC	View
CC0402CRNPO9BN1R8	Yageo, 1.8pF ±0.25pF 50V Ceramic Capacitor C0G, NP0 0402 (1005 Metric), CC	View

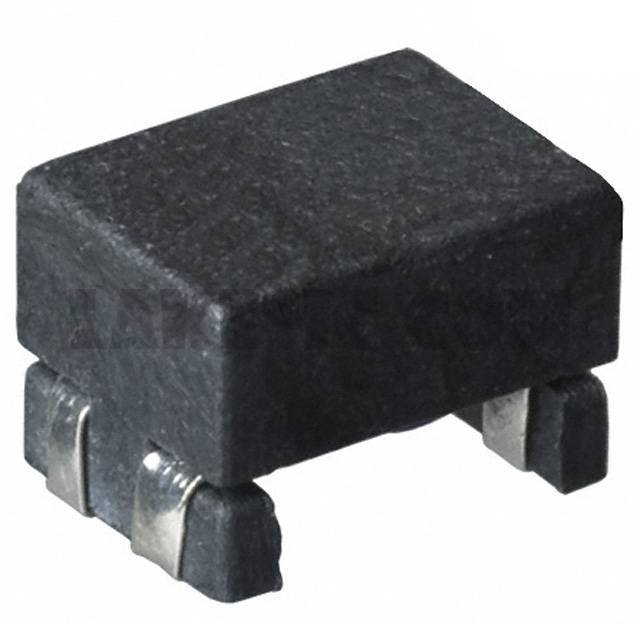

CC1812C513R-10
