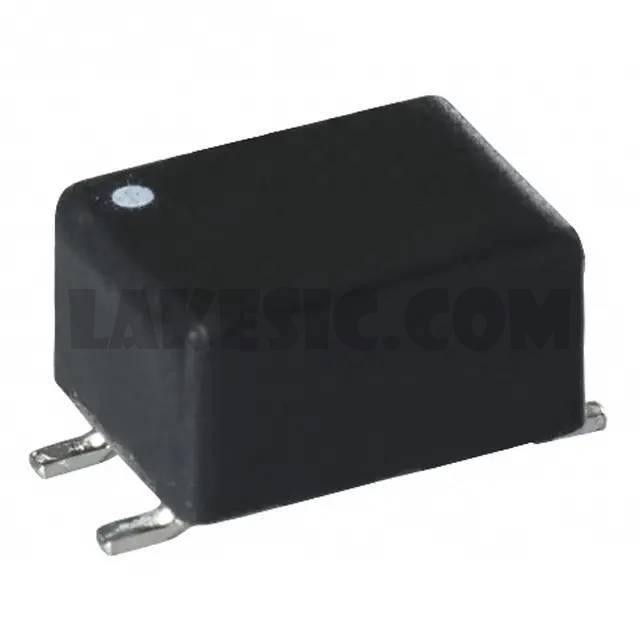

CC2824B475R-10
CC2824B475R-10
Part Number CC2824B475R-10 Description CMC 4.7MH 400MA 2LN 12.3KOHM SMD Package / Case Horizontal, 4 Flat LeadUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 4.7mH @ 10kHz 2 Line Common Mode Choke Surface Mount 12.3 kOhms @ 2MHz 400mA DCR 1.3Ohm
To learn about the specification of CC2824B475R-10, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CC2824B475R-10 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CC2824B475R-10.
We are offering CC2824B475R-10 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
CC2824B475R-10 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet CC2824B475R-10 Drawing Standard Package 1 Manufacturer Laird-Signal Integrity Products Series CC Packaging Cut Tape (CT) Part Status Active Filter Type Signal Line Number of Lines 2 Impedance @ Frequency 12.3 kOhms @ 2MHz Inductance @ Frequency 4.7mH @ 10kHz Current Rating (Max) 400mA DC Resistance (DCR) (Max) 1.3Ohm Voltage Rating - DC 80V Voltage Rating - AC 42V Operating Temperature -40°C ~ 125°C Ratings - Approvals - Features - Mounting Type Surface Mount Size / Dimension 0.354" L x 0.217" W (9.00mm x 5.50mm) Height (Max) 0.193" (4.90mm) Package / Case Horizontal, 4 Flat Lead
