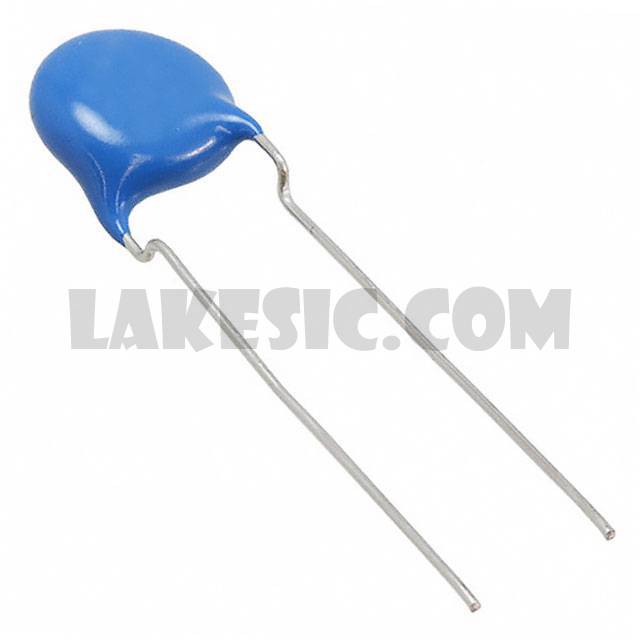

Categories	Capacitors / Ceramic Capacitors
Datasheet	CC45 Series
Standard Package	1000
Manufacturer	TDK Corporation
Series	CC45
Packaging	Bulk
Part Status	Active
Capacitance	390pF
Tolerance	±5%
Voltage - Rated	1000V (1kV)
Temperature Coefficient	SL
Operating Temperature	-25°C ~ 125°C
Features	High Voltage, Low Dissipation Factor
Ratings	-
Applications	General Purpose
Failure Rate	-
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.413" Dia (10.50mm)
Height - Seated (Max)	0.571" (14.50mm)
Thickness (Max)	-
Lead Spacing	0.197" (5.00mm)
Lead Style	Formed Leads - Kinked

CC45SL3DD271JYNNA	TDK Corporation, 270pF ±5% 2000V (2kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3FD330JYNNA	TDK Corporation, 33pF ±5% 3000V (3kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3AD101JYVNA	TDK Corporation, 100pF ±5% 1000V (1kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3AD331JYNNA	TDK Corporation, 330pF ±5% 1000V (1kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3FD390JYGNA	TDK Corporation, 39pF ±5% 3000V (3kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3JD390JYVNA	TDK Corporation, 39pF ±5% 6000V (6kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3FD180JYNNA	TDK Corporation, 18pF ±5% 3000V (3kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3DD220JYNNA	TDK Corporation, 22pF ±5% 2000V (2kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3JD030CYGNA	TDK Corporation, 3pF ±0.25pF 6000V (6kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3FD560JYNNA	TDK Corporation, 56pF ±5% 3000V (3kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3FD470JYGNA	TDK Corporation, 47pF ±5% 3000V (3kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3FD100JYNNA	TDK Corporation, 10pF ±5% 3000V (3kV) Ceramic Capacitor SL Radial, Disc, CC45	View

CC45SL3AD391JYVNA

Part NumberCC45SL3AD391JYVNA
