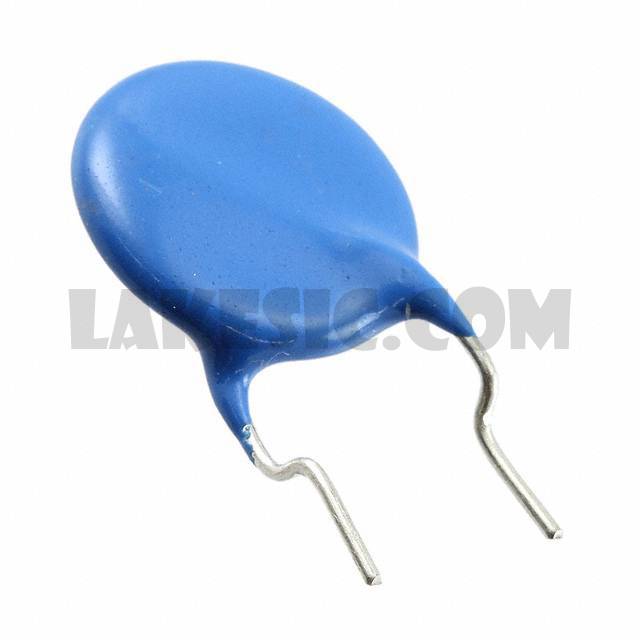

Categories	Capacitors / Ceramic Capacitors
Datasheet	CC45 Series
Standard Package	1000
Manufacturer	TDK Corporation
Series	CC45
Packaging	Bulk
Part Status	Active
Capacitance	220pF
Tolerance	±5%
Voltage - Rated	3000V (3kV)
Temperature Coefficient	SL
Operating Temperature	-25°C ~ 125°C
Features	High Voltage, Low Dissipation Factor
Ratings	-
Applications	General Purpose
Failure Rate	-
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.472" Dia (12.00mm)
Height - Seated (Max)	0.630" (16.00mm)
Thickness (Max)	-
Lead Spacing	0.295" (7.50mm)
Lead Style	Formed Leads - Kinked

CC45SL3JD180JYNNA	TDK Corporation, 18pF ±5% 6000V (6kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3AD471JYGNA	TDK Corporation, 470pF ±5% 1000V (1kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3AD121JYNNA	TDK Corporation, 120pF ±5% 1000V (1kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3JD030CYGNA	TDK Corporation, 3pF ±0.25pF 6000V (6kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3FD101JYNNA	TDK Corporation, 100pF ±5% 3000V (3kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3FD470JYNNA	TDK Corporation, 47pF ±5% 3000V (3kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3AD470JYGNA	TDK Corporation, 47pF ±5% 1000V (1kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3JD120JYNNA	TDK Corporation, 12pF ±5% 6000V (6kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3DD331JYNNA	TDK Corporation, 330pF ±5% 2000V (2kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3AD221JYVNA	TDK Corporation, 220pF ±5% 1000V (1kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3FD180JYGNA	TDK Corporation, 18pF ±5% 3000V (3kV) Ceramic Capacitor SL Radial, Disc, CC45	View
CC45SL3AD470JYVNA	TDK Corporation, 47pF ±5% 1000V (1kV) Ceramic Capacitor SL Radial, Disc, CC45	View

CC45SL3FD221JYNNA

Part NumberCC45SL3FD221JYNNA
