Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	CD-HD2x(L) Series
Standard Package	1
Manufacturer	Bourns Inc.
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Single Phase
Technology	Schottky
Voltage - Peak Reverse (Max)	100V
Current - Average Rectified (Io)	2A
Voltage - Forward (Vf) (Max) @ If	850mV @ 1A
Current - Reverse Leakage @ Vr	100µA @ 100V
Operating Temperature	-55°C ~ 125°C (TC)
Mounting Type	Surface Mount
Package / Case	Chip, Concave Terminals
Supplier Device Package	-
Base Part Number	CD-HD

CDBHM260L-HF	Comchip Technology, Bridge Rectifier Single Phase Schottky 60V Surface Mount MBS-2,	View
SDB207-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 1kV Surface Mount SDB-1,	View
DF08S-T	Diodes Incorporated, Bridge Rectifier Single Phase Standard 800V Surface Mount DF-S,	View
KMB22STR	SMC Diode Solutions, Bridge Rectifier Single Phase Schottky 20V Surface Mount MBS,	View
DF1508S-T	Diodes Incorporated, Bridge Rectifier Single Phase Standard 800V Surface Mount DF-S,	View
DBLS209G RDG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 1.4kV Surface Mount DBLS,	View
MSB30M-13	Diodes Incorporated, Bridge Rectifier Single Phase Standard 1kV Surface Mount 4-MSBL,	View
CD-MBL206SL	Bourns Inc., Bridge Rectifier Single Phase Standard 600V Surface Mount,	View
DF02S	ON Semiconductor, Bridge Rectifier Single Phase Standard 200V Surface Mount 4-SDIP,	View
MB6FTR	SMC Diode Solutions, Bridge Rectifier Single Phase Standard 600V Surface Mount MBF,	View
ABS6 REG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 600V Surface Mount ABS,	View
CDBHM1100L-HF	Comchip Technology, Bridge Rectifier Single Phase Schottky 100V Surface Mount MBS,	View

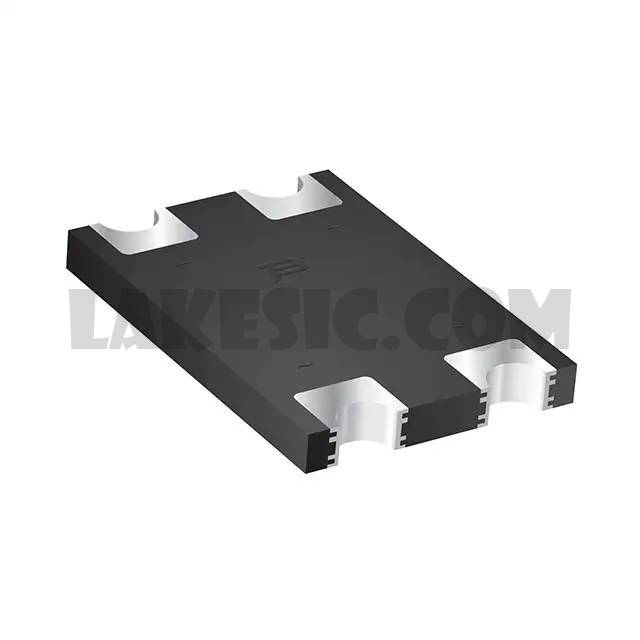

CD-HD201

Part NumberCD-HD201
