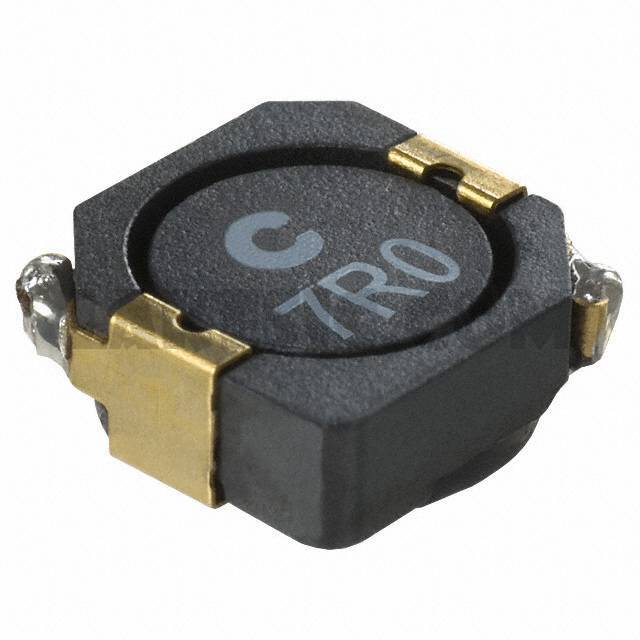

CD1-7R0-R

Part NumberCD1-7R0-R

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 7UH 4.55A 27 MOHM SMD

DatasheetCD Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description7µH Shielded Wirewound Inductor 4.55A 27mOhm Max Nonstandard

To learn about the specification of CD1-7R0-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CD1-7R0-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CD1-7R0-R.
We are offering CD1-7R0-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CD1-7R0-R - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

CD Series

Standard Package

Manufacturer

Eaton - Electronics Division

Series

Packaging

Cut Tape (CT)

Part Status

Obsolete

Type

Wirewound

Material - Core

Ferrite

Inductance

7µH

Tolerance

±30%

Current Rating (Amps)

4.55A

Current - Saturation

4.8A

Shielding

Shielded

DC Resistance (DCR)

27mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 85°C

Inductance Frequency - Test

100kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.413" L x 0.409" W (10.50mm x 10.40mm)

Height - Seated (Max)

0.157" (4.00mm)
