Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	CDBM140-HF Thru. CDBM1200-HF
Standard Package	2500
Manufacturer	Comchip Technology
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	100V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	850mV @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	500µA @ 100V
Capacitance @ Vr, F	120pF @ 4V, 1MHz
Mounting Type	Surface Mount

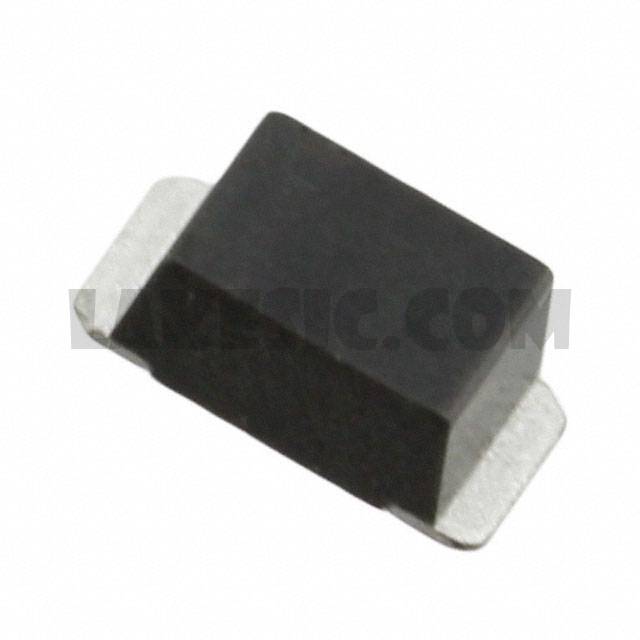

Package / Case	SOD-123T
Supplier Device Package	Mini SMA/SOD-123
Operating Temperature - Junction	-50°C ~ 150°C
Base Part Number	CDBM1100
