Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single

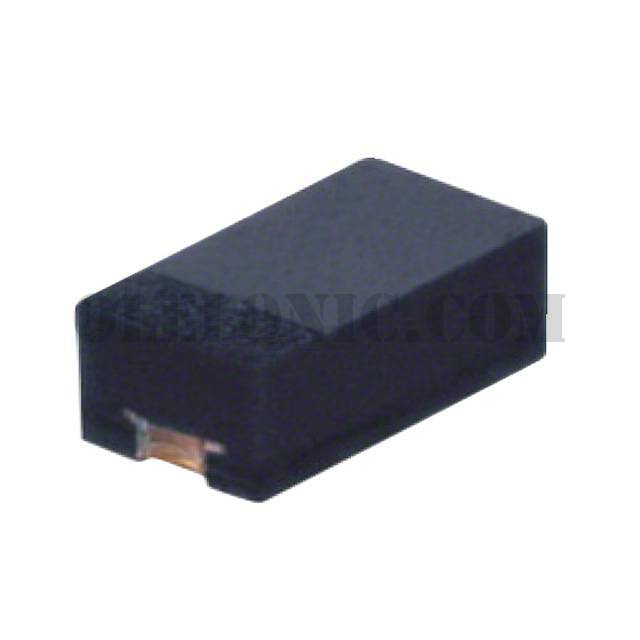

Datasheet	CDBU00340-HF
Standard Package	4000
Manufacturer	Comchip Technology
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	40V
Current - Average Rectified (Io)	30mA
Voltage - Forward (Vf) (Max) @ If	370mV @ 1mA
Speed	Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr	1µA @ 40V
Capacitance @ Vr, F	1.5pF @ 1V, 1MHz
Mounting Type	Surface Mount
Package / Case	2-SMD, No Lead
Supplier Device Package	0603/SOD-523F
Operating Temperature - Junction	125°C (Max)
Base Part Number	CDBU00340
