Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	CDBZ31060-HF
Standard Package	5000
Manufacturer	Comchip Technology
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	60V
Current - Average Rectified (Io)	10A
Voltage - Forward (Vf) (Max) @ If	750mV @ 10A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	100µA @ 60V
Capacitance @ Vr, F	-
Mounting Type	Surface Mount

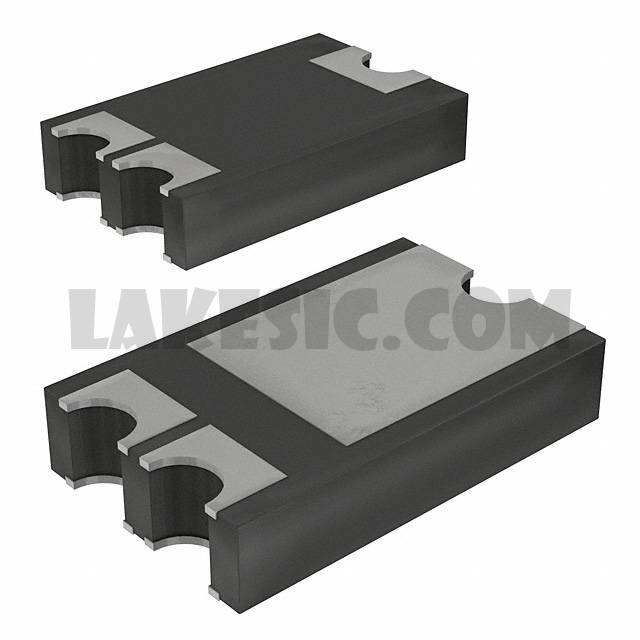

Package / Case	TO-277, 3-PowerDFN
Supplier Device Package	TO-277 (Z3)
Operating Temperature - Junction	-55°C ~ 150°C
