Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single

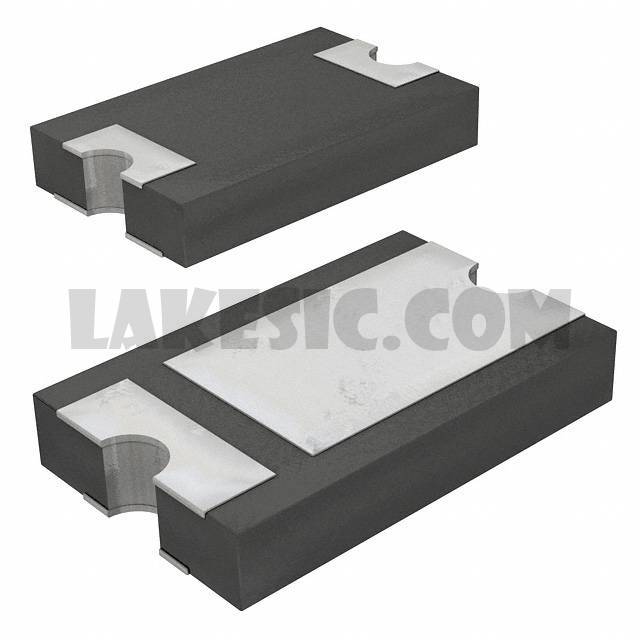

Datasheet	CDBZ5T1045-HF
Standard Package	1
Manufacturer	Comchip Technology
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	45V
Current - Average Rectified (Io)	10A
Voltage - Forward (Vf) (Max) @ If	550mV @ 10A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	100µA @ 45V
Capacitance @ Vr, F	-
Mounting Type	Surface Mount
Package / Case	Z5-T
Supplier Device Package	SMC (Z5-T)
Operating Temperature - Junction	-55°C ~ 150°C
