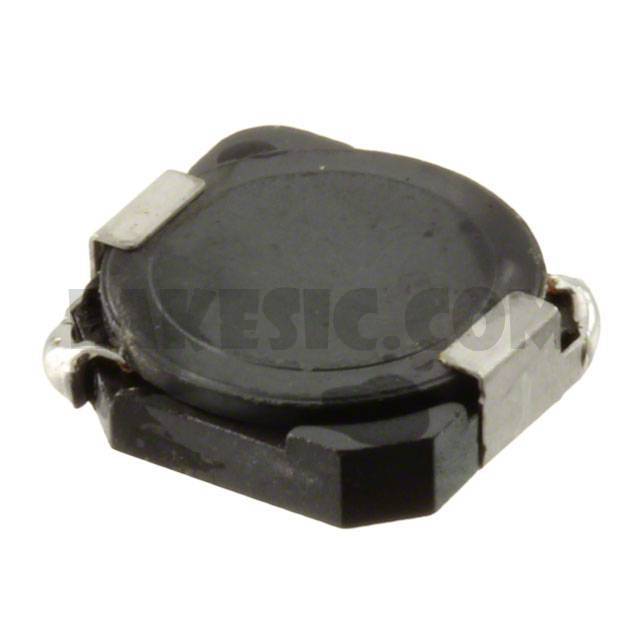

CDRH103RNP-220NC-B
CDRH103RNP-220NC-B
Part Number CDRH103RNP-220NC-B
Description FIXED IND 22UH 1.6A 143 MOHM SMD
Package / Case Nonstandard
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 22µH Shielded Inductor 1.6A 143mOhm Max Nonstandard
To learn about the specification of CDRH103RNP-220NC-B, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CDRH103RNP-220NC-B with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CDRH103RNP-220NC-B.
We are offering CDRH103RNP-220NC-B for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
CDRH103RNP-220NC-B - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet CDRH103R Series
Standard Package 1
Manufacturer Sumida America Components Inc.
Series CDRH103R
Packaging Cut Tape (CT)
Part Status Active
Type -
Material - Core Ferrite
Inductance 22µH
Tolerance ±30%
Current Rating (Amps) 1.6A
Current - Saturation 2.16A
Shielding Shielded
DC Resistance (DCR) 143mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Operating Temperature -40°C ~ 100°C
Inductance Frequency - Test 100kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.402" L x 0.394" W (10.20mm x 10.00mm)
Height - Seated (Max) 0.122" (3.10mm)
