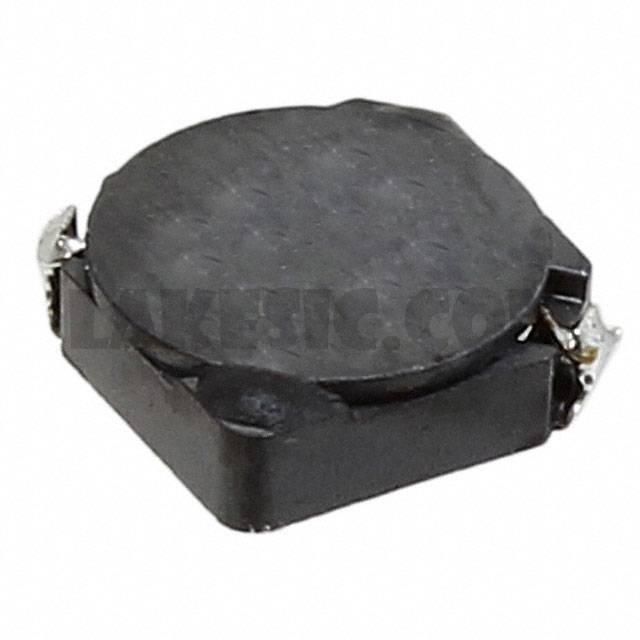

CDRH5D16NP-220MC
CDRH5D16NP-220MC
Part Number CDRH5D16NP-220MC
Description FIXED IND 22UH 800MA 320 MOHM
Package / Case Nonstandard
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 22µH Shielded Inductor 800mA 320mOhm Max Nonstandard
To learn about the specification of CDRH5D16NP-220MC, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CDRH5D16NP-220MC with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CDRH5D16NP-220MC.
We are offering CDRH5D16NP-220MC for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
CDRH5D16NP-220MC - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet CDRH5D16 Series
Standard Package 1
Manufacturer Sumida America Components Inc.
Series CDRH5D16
Packaging Cut Tape (CT)
Part Status Active
Type -
Material - Core Ferrite
Inductance 22µH
Tolerance ±20%
Current Rating (Amps) 800mA
Current - Saturation 950mA
Shielding Shielded
DC Resistance (DCR) 320mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Operating Temperature -40°C ~ 105°C
Inductance Frequency - Test 100kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.220" L x 0.220" W (5.60mm x 5.60mm)
Height - Seated (Max) 0.071" (1.80mm)
