CEDM8004VL TR

CEDM8004VL TR

Part NumberCEDM8004VL TR

ManufacturerCentral Semiconductor Corp

DescriptionMOSFET P-CH 30V 0.45A SOT883

DatasheetCEDM8004VL

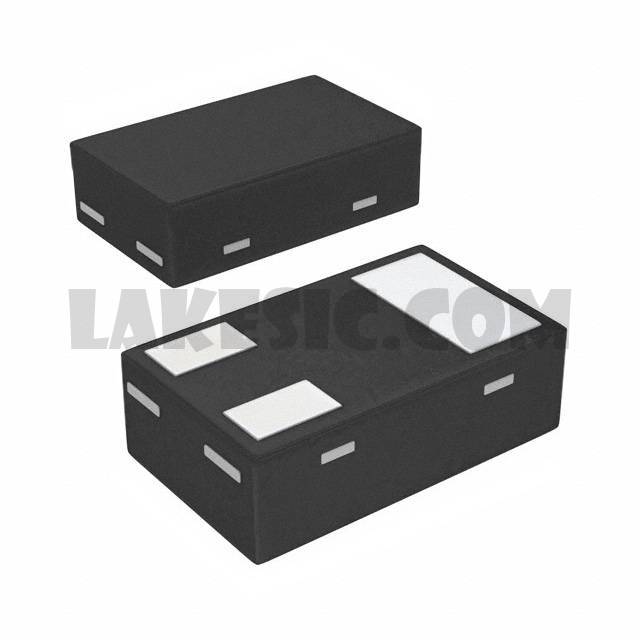

Package / CaseSC-101, SOT-883

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 30V 450mA (Ta) 100mW (Ta) Surface Mount SOT-883VL

To learn about the specification of CEDM8004VL TR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CEDM8004VL TR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CEDM8004VL TR.
We are offering CEDM8004VL TR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CEDM8004VL TR - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	CEDM8004VL
Standard Package	1
Manufacturer	Central Semiconductor Corp
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	450mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	1.1Ohm @ 430mA, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.88nC @ 4.5V
Vgs (Max)	8V
Input Capacitance (Ciss) (Max) @ Vds	55pF @ 25V
FET Feature	-
Power Dissipation (Max)	100mW (Ta)
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-883VL
Package / Case	SC-101, SOT-883
