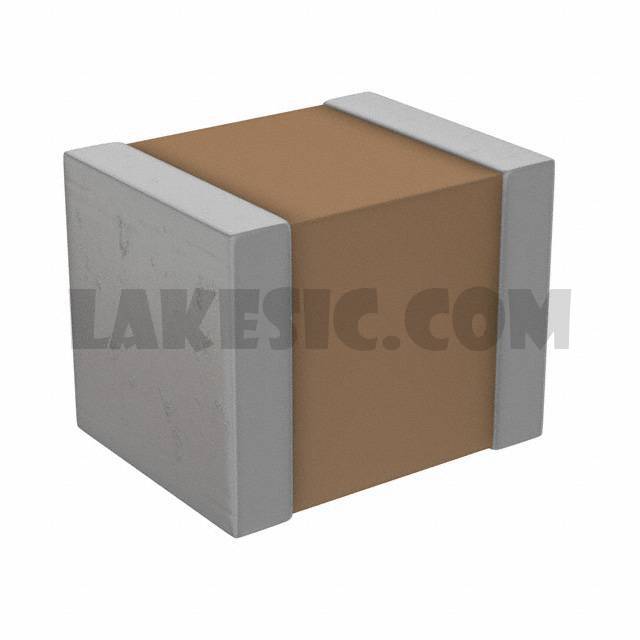

Categories	Capacitors / Ceramic Capacitors
Datasheet	CGA Series, Automotive Mid Voltage Datasheet
Standard Package	1000
Manufacturer	TDK Corporation
Series	CGA
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	1µF
Tolerance	±10%
Voltage - Rated	100V
Temperature Coefficient	X7R
Operating Temperature	-55°C ~ 125°C
Features	-
Ratings	AEC-Q200
Applications	Automotive
Failure Rate	-
Mounting Type	Surface Mount, MLCC
Package / Case	1210 (3225 Metric)
Size / Dimension	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)	-
Thickness (Max)	0.087" (2.20mm)
Lead Spacing	-
Lead Style	-
