Categories	Capacitors / Ceramic Capacitors
Datasheet	CGA Series, Automotive High Voltage
Standard Package	1000
Manufacturer	TDK Corporation
Series	CGA
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	10pF
Tolerance	±1pF
Voltage - Rated	3000V (3kV)
Temperature Coefficient	C0G, NP0
Operating Temperature	-55°C ~ 125°C
Features	-
Ratings	AEC-Q200
Applications	Automotive
Failure Rate	-

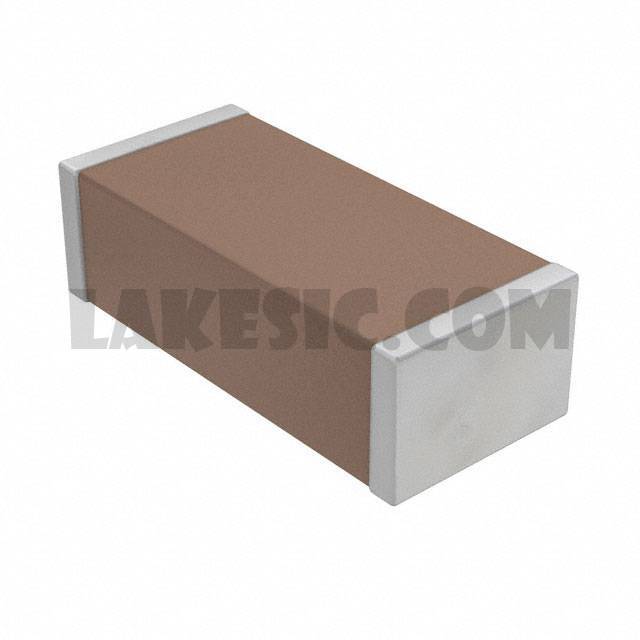

Mounting Type	Surface Mount, MLCC
Package / Case	1808 (4520 Metric)
Size / Dimension	0.177" L x 0.079" W (4.50mm x 2.00mm)
Height - Seated (Max)	-
Thickness (Max)	0.039" (1.00mm)
Lead Spacing	-
Lead Style	-

CGA3E2C0G2A272J080AA	TDK Corporation, 2700pF ±5% 100V Ceramic Capacitor C0G, NP0 0603 (1608 Metric), CGA	View
CGA3E2NP01H221J080AA	TDK Corporation, 220pF ±5% 50V Ceramic Capacitor C0G, NP0 0603 (1608 Metric), CGA	View
CGA9M3X7T2E155M200KA	TDK Corporation, 1.5µF ±20% 250V Ceramic Capacitor X7T 2220 (5750 Metric), CGA	View
CGA3E2C0G2A332J080AA	TDK Corporation, 3300pF ±5% 100V Ceramic Capacitor C0G, NP0 0603 (1608 Metric), CGA	View
CGA3E2NP01H472J080AA	TDK Corporation, 4700pF ±5% 50V Ceramic Capacitor C0G, NP0 0603 (1608 Metric), CGA	View
CGA3E2NP02A120J080AA	TDK Corporation, 12pF ±5% 100V Ceramic Capacitor C0G, NP0 0603 (1608 Metric), CGA	View
CGA4J3X7T2E104K125AA	TDK Corporation, 0.1µF ±10% 250V Ceramic Capacitor X7T 0805 (2012 Metric), CGA	View
CGA2B1X7R1E333K050BC	TDK Corporation, 0.033µF ±10% 25V Ceramic Capacitor X7R 0402 (1005 Metric), CGA	View
CGA3E3X5R1V684K080AB	TDK Corporation, 0.68µF ±10% 35V Ceramic Capacitor X5R 0603 (1608 Metric), CGA	View
CGA3E2C0G1H040C080AA	TDK Corporation, 4pF ±0.25pF 50V Ceramic Capacitor C0G, NP0 0603 (1608 Metric), CGA	View
CGA3E2C0G1H103J080AA	TDK Corporation, 10000pF ±5% 50V Ceramic Capacitor C0G, NP0 0603 (1608 Metric), CGA	View
CGA7M1C0G3F820K200KA	TDK Corporation, 82pF ±10% 3000V (3kV) Ceramic Capacitor C0G, NP0 1808 (4520 Metric), CGA	View

CGA7F1C0G3F100F085KA

Part NumberCGA7F1C0G3F100F085KA
