Categories	Capacitors / Ceramic Capacitors
Datasheet	CGA Series, Automotive High Voltage
Standard Package	1000
Manufacturer	TDK Corporation
Series	CGA
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	10000pF
Tolerance	±10%
Voltage - Rated	1000V (1kV)
Temperature Coefficient	X7R
Operating Temperature	-55°C ~ 125°C
Features	-
Ratings	AEC-Q200
Applications	Automotive
Failure Rate	-

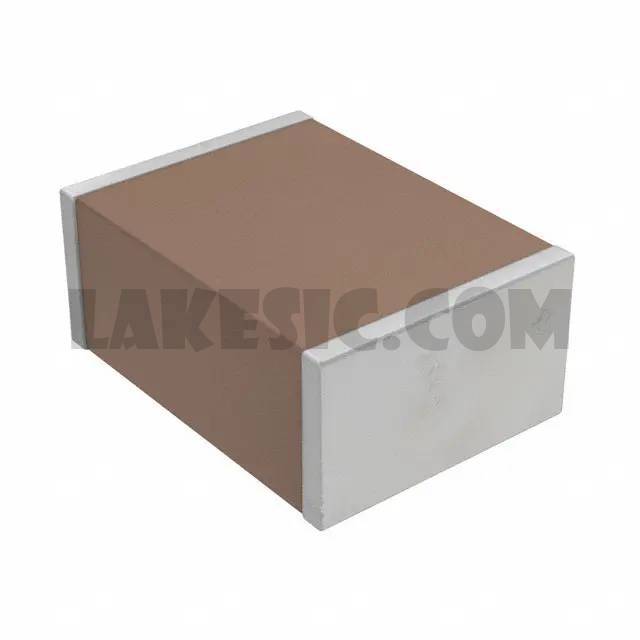

Mounting Type	Surface Mount, MLCC
Package / Case	1812 (4532 Metric)
Size / Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max)	-
Thickness (Max)	0.087" (2.20mm)
Lead Spacing	-
Lead Style	-
