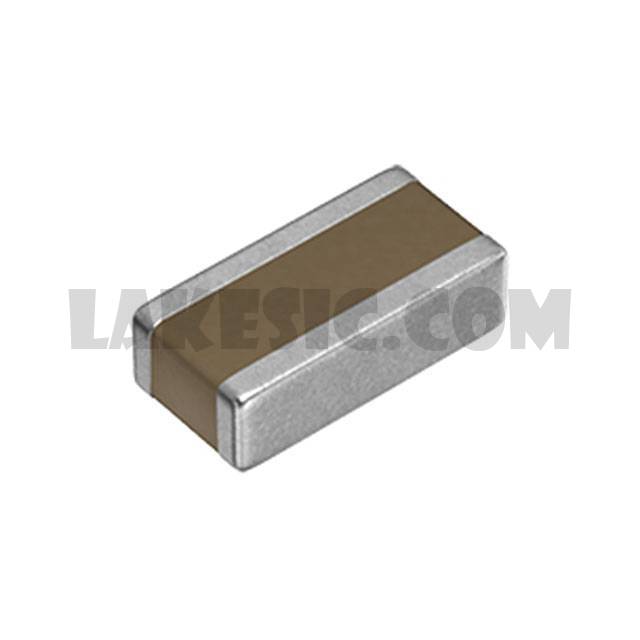

Categories	Capacitors / Ceramic Capacitors
Datasheet	CGAE Series, Automotive, low ESL reverse geometry
Standard Package	1
Manufacturer	TDK Corporation
Series	CGA
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	0.047µF
Tolerance	±20%
Voltage - Rated	25V
Temperature Coefficient	X7R
Operating Temperature	-55°C ~ 125°C
Features	Low ESL (Reverse Geometry)
Ratings	AEC-Q200
Applications	Automotive, Bypass, Decoupling
Failure Rate	-
Mounting Type	Surface Mount, MLCC
Package / Case	0204 (0510 Metric)
Size / Dimension	0.020" L x 0.039" W (0.52mm x 1.00mm)
Height - Seated (Max)	-
Thickness (Max)	0.014" (0.35mm)
Lead Spacing	-
Lead Style	-

CGA4J2NP02A272J125AA	TDK Corporation, 2700pF ±5% 100V Ceramic Capacitor C0G, NP0 0805 (2012 Metric), CGA	View
CGA2B3X7R1V223M050BB	TDK Corporation, 0.022µF ±20% 35V Ceramic Capacitor X7R 0402 (1005 Metric), CGA	View
CGA8L3C0G2E223J160KA	TDK Corporation, 0.022µF ±5% 250V Ceramic Capacitor C0G, NP0 1812 (4532 Metric), CGA	View
CGA3E1X5R1A335K080AC	TDK Corporation, 3.3µF ±10% 10V Ceramic Capacitor X5R 0603 (1608 Metric), CGA	View
CGA3E2C0G2A100D080AA	TDK Corporation, 10pF ±0.5pF 100V Ceramic Capacitor C0G, NP0 0603 (1608 Metric), CGA	View
CGA3E3X5R1V224M080AB	TDK Corporation, 0.22µF ±20% 35V Ceramic Capacitor X5R 0603 (1608 Metric), CGA	View
CGA2B3X7S2A682M050BB	TDK Corporation, 6800pF ±20% 100V Ceramic Capacitor X7S 0402 (1005 Metric), CGA	View
CGA3E2C0G2A681J080AA	TDK Corporation, 680pF ±5% 100V Ceramic Capacitor C0G, NP0 0603 (1608 Metric), CGA	View
CGA2B3X7R1V223K050BB	TDK Corporation, 0.022µF ±10% 35V Ceramic Capacitor X7R 0402 (1005 Metric), CGA	View
CGA3E3X7S2A683K080AB	TDK Corporation, 0.068µF ±10% 100V Ceramic Capacitor X7S 0603 (1608 Metric), CGA	View
CGA3E2NP02A270J080AA	TDK Corporation, 27pF ±5% 100V Ceramic Capacitor C0G, NP0 0603 (1608 Metric), CGA	View
CGA1A2X7R1E222M030BA	TDK Corporation, 2200pF ±20% 25V Ceramic Capacitor X7R 0201 (0603 Metric), CGA	View

CGAEA2X7R1E473M030BA

Part NumberCGAEA2X7R1E473M030BA
