Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	CH, CL Series Chokes
Standard Package	1
Manufacturer	Signal Transformer
Series	-
Packaging	Bulk
Part Status	Active
Type	-
Material - Core	-
Inductance	1.4mH
Tolerance	-
Current Rating (Amps)	50A
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	10mOhm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-
Mounting Type	Chassis Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	6.374" L x 5.252" W (161.90mm x 133.40mm)
Height - Seated (Max)	5.374" (136.50mm)

CH0402-18RJFPA	Vishay Sfernice, 18 Ohms ±5% 0.05W, 1/20W Chip Resistor 0402 (1005 Metric) Thin Film, CH	View
CH0402-75RGFPA	Vishay Sfernice, 75 Ohms ±2% 0.05W, 1/20W Chip Resistor 0402 (1005 Metric) Thin Film, CH	View
CH-200	Signal Transformer, 300µH Unshielded Inductor 200A 1mOhm Nonstandard,	View
CH-30	Signal Transformer, 4mH Unshielded Inductor 30A 10mOhm Nonstandard,	View
CH0402-200RGFPA	Vishay Sfernice, 200 Ohms ±2% 0.05W, 1/20W Chip Resistor 0402 (1005 Metric) Thin Film, CH	View
CH-100	Signal Transformer, 500µH Unshielded Inductor 100A 5mOhm Nonstandard,	View
CH0402-100RGFPA	Vishay Sfernice, 100 Ohms ±2% 0.05W, 1/20W Chip Resistor 0402 (1005 Metric) Thin Film, CH	View
CH0402-18RJFPA	Vishay Sfernice, 18 Ohms ±5% 0.05W, 1/20W Chip Resistor 0402 (1005 Metric) Thin Film, CH	View
CH0402-25RJFPA	Vishay Sfernice, 25 Ohms ±5% 0.05W, 1/20W Chip Resistor 0402 (1005 Metric) Thin Film, CH	View
CH0402-75RGFPA	Vishay Sfernice, 75 Ohms ±2% 0.05W, 1/20W Chip Resistor 0402 (1005 Metric) Thin Film, CH	View
CH-6	Signal Transformer, 40mH Unshielded Inductor 6A 400mOhm Nonstandard,	View
CH0402-50RJNPA	Vishay Sfernice, 50 Ohms ±5% 0.05W, 1/20W Chip Resistor 0402 (1005 Metric) Thin Film, CH	View

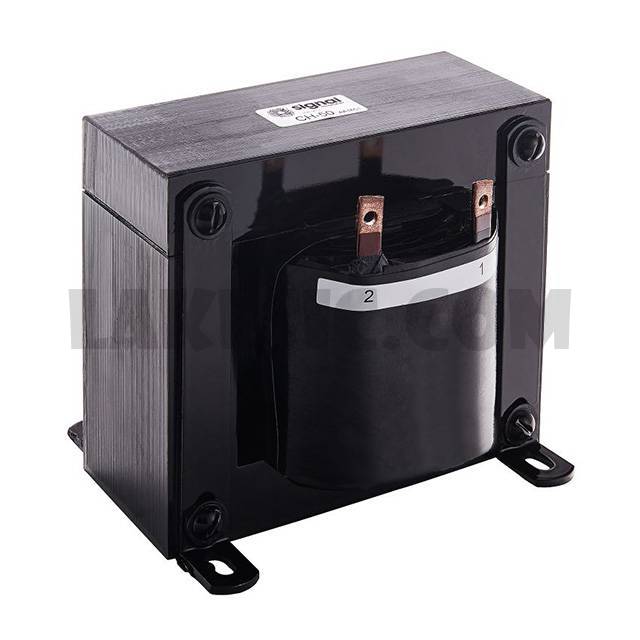

CH-50

Part NumberCH-50
