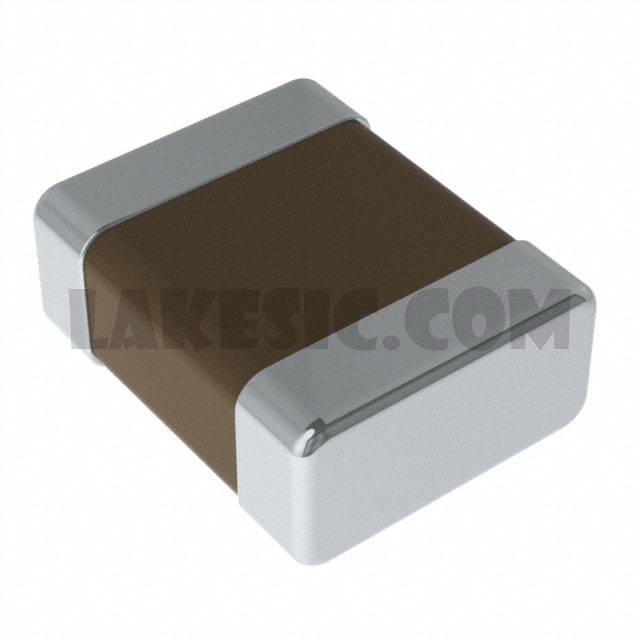

CIGT252012LM2R2MNE

Part NumberCIGT252012LM2R2MNE

ManufacturerSamsung Electro-Mechanics

DescriptionFIXED IND 2.2UH 2A 89MOHM SMD

DatasheetCIGT252012LM2R2MNE Spec

Package / Case1008 (2520 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2.2µH Unshielded Thin Film Inductor 2A 89mOhm Max 1008 (2520 Metric)

To learn about the specification of CIGT252012LM2R2MNE, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CIGT252012LM2R2MNE with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CIGT252012LM2R2MNE.
We are offering CIGT252012LM2R2MNE for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CIGT252012LM2R2MNE - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

CIGT252012LM2R2MNE Spec

Standard Package

Manufacturer

Samsung Electro-Mechanics

Series

CIGT

Packaging

Cut Tape (CT)

Part Status

Discontinued at Digi-Key

Type

Thin Film

Material - Core

Metal Composite

Inductance

2.2µH

Tolerance

±20%

Current Rating (Amps)

Current - Saturation

2.3A

Shielding

Unshielded

DC Resistance (DCR)

89mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

1MHz

Features

Mounting Type

Surface Mount

Package / Case

1008 (2520 Metric)

Supplier Device Package

1008 (2520 Metric)

Size / Dimension

0.098" L x 0.079" W (2.50mm x 2.00mm)

Height - Seated (Max)

0.047" (1.20mm)
