CJD200 TR13

CJD200 TR13

Part NumberCJD200 TR13

ManufacturerCentral Semiconductor Corp

DescriptionTRANS NPN 40V 5A DPAK

DatasheetCJD200, CJD210

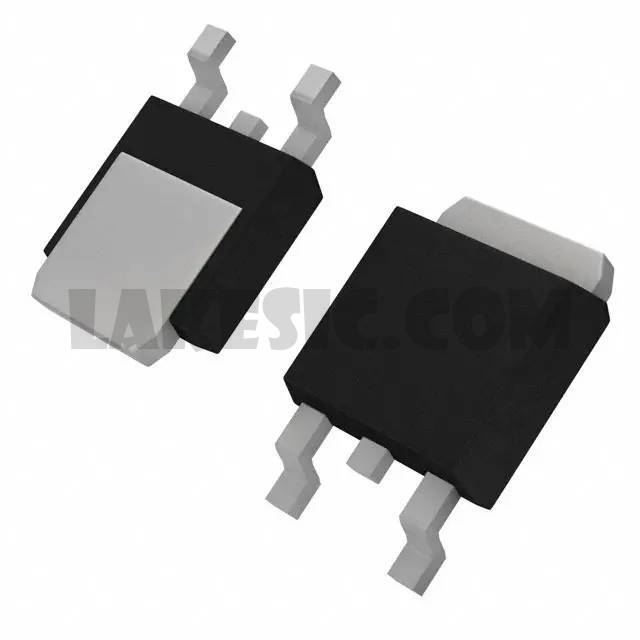

Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 25V 5A 65MHz 1.4W Surface Mount DPAK

To learn about the specification of CJD200 TR13, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CJD200 TR13 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CJD200 TR13.
We are offering CJD200 TR13 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CJD200 TR13 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	CJD200, CJD210
Standard Package	2500
Manufacturer	Central Semiconductor Corp
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	5A
Voltage - Collector Emitter Breakdown (Max)	25V
Vce Saturation (Max) @ Ib, Ic	1.8V @ 1A, 5A
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	45 @ 2A, 1V
Power - Max	1.4W
Frequency - Transition	65MHz
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package	DPAK
