Categories	Capacitors / Ceramic Capacitors
Datasheet	CKG Series, Commercial, MegaCap
Standard Package	1
Manufacturer	TDK Corporation
Series	MEGACAP, CKG
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	4.7µF
Tolerance	±20%
Voltage - Rated	100V
Temperature Coefficient	X7R
Operating Temperature	-55°C ~ 125°C
Features	Low ESL (Stacked)
Ratings	-
Applications	SMPS Filtering, Bypass, Decoupling
Failure Rate	-
Mounting Type	Surface Mount, MLCC

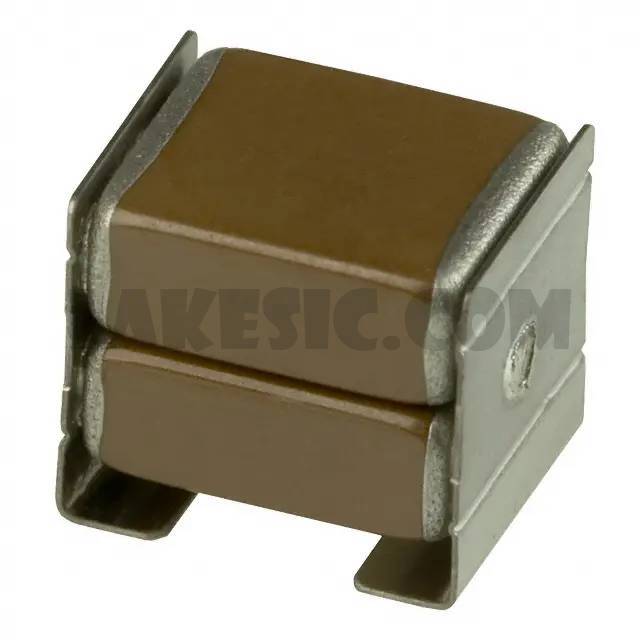

Package / Case	Stacked SMD, 2 J-Lead
Size / Dimension	0.197" L x 0.138" W (5.00mm x 3.50mm)
Height - Seated (Max)	-
Thickness (Max)	0.217" (5.50mm)
Lead Spacing	-
Lead Style	J-Lead

CKG45NX7S1H106M500JJ	TDK Corporation, 10µF ±20% 50V Ceramic Capacitor X7S Stacked SMD, 2 J-Lead, MEGACAP, CKG	View
CKG57KX7R2A335M335JJ	TDK Corporation, 3.3µF ±20% 100V Ceramic Capacitor X7R Nonstandard SMD, MEGACAP, CKG	View
CKG45NX7S1H106M500JH	TDK Corporation, 10µF ±20% 50V Ceramic Capacitor X7S Stacked SMD, 2 J-Lead, MEGACAP, CKG	View
CKG45NX7T2E155M500JH	TDK Corporation, 1.5µF ±20% 250V Ceramic Capacitor X7T Stacked SMD, 2 J-Lead, MEGACAP, CKG	View
CKG57NX5R1E476M500JJ	TDK Corporation, 47µF ±20% 25V Ceramic Capacitor X5R Stacked SMD, 2 J-Lead, MEGACAP, CKG	View
CKG57NX7S1E476M500JH	TDK Corporation, 47µF ±20% 25V Ceramic Capacitor X7S Stacked SMD, 2 J-Lead, MEGACAP, CKG	View
CKG57KX7R2A475M335JH	TDK Corporation, 4.7µF ±20% 100V Ceramic Capacitor X7R Nonstandard SMD, MEGACAP, CKG	View
CKG45NX7R2E105M500JH	TDK Corporation, 1µF ±20% 250V Ceramic Capacitor X7R Stacked SMD, 2 J-Lead, MEGACAP, CKG	View
CKG45KX7R2A105M290JH	TDK Corporation, 1µF ±20% 100V Ceramic Capacitor X7R Nonstandard SMD, MEGACAP, CKG	View
CKG45KX7S1C226M290JJ	TDK Corporation, 22µF ±20% 16V Ceramic Capacitor X7S Nonstandard SMD, MEGACAP, CKG	View
CKG57NX7T2W155M500JH	TDK Corporation, 1.5µF ±20% 450V Ceramic Capacitor X7T Stacked SMD, 2 J-Lead, MEGACAP, CKG	View
CKG57KX7T2J334M335JJ	TDK Corporation, 0.33µF ±20% 630V Ceramic Capacitor X7T Nonstandard SMD, MEGACAP, CKG	View

CKG45NX7R2A475M500JH

Part NumberCKG45NX7R2A475M500JH
