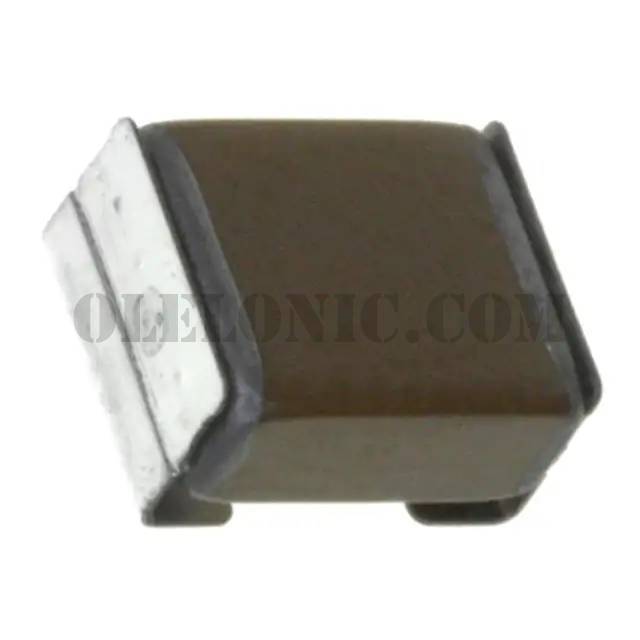

Categories	Capacitors / Ceramic Capacitors
Datasheet	CKG Series, Commercial, MegaCap
Standard Package	1
Manufacturer	TDK Corporation
Series	MEGACAP, CKG
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	4.7µF
Tolerance	±10%
Voltage - Rated	50V
Temperature Coefficient	X7R
Operating Temperature	-55°C ~ 125°C
Features	Low ESL
Ratings	-
Applications	SMPS Filtering, Bypass, Decoupling
Failure Rate	-
Mounting Type	Surface Mount, MLCC
Package / Case	Nonstandard SMD
Size / Dimension	0.236" L x 0.197" W (6.00mm x 5.00mm)
Height - Seated (Max)	-
Thickness (Max)	0.138" (3.50mm)
Lead Spacing	-
Lead Style	L-Lead

CKG57KX7R2A225M335JJ	TDK Corporation, 2.2µF ±20% 100V Ceramic Capacitor X7R Nonstandard SMD, MEGACAP, CKG	View
CKG57KX7T2W105K335JH	TDK Corporation, 1µF ±10% 450V Ceramic Capacitor X7T Nonstandard SMD, MEGACAP, CKG	View
CKG32KX7S2A335M335AJ	TDK Corporation, 3.3µF ±20% 100V Ceramic Capacitor X7S Nonstandard SMD, MEGACAP, CKG	View
CKG57KX7S1C476M335JH	TDK Corporation, 47µF ±20% 16V Ceramic Capacitor X7S Nonstandard SMD, MEGACAP, CKG	View
CKG32KX7S1H685M335AH	TDK Corporation, 6.8µF ±20% 50V Ceramic Capacitor X7S Nonstandard SMD, MEGACAP, CKG	View
CKG57KX7T2E225K335JH	TDK Corporation, 2.2µF ±10% 250V Ceramic Capacitor X7T Nonstandard SMD, MEGACAP, CKG	View
CKG32KX7R2A474M335AJ	TDK Corporation, 0.47µF ±20% 100V Ceramic Capacitor X7R Nonstandard SMD, MEGACAP, CKG	View
CKG32KX7R1E106M335AH	TDK Corporation, 10µF ±20% 25V Ceramic Capacitor X7R Nonstandard SMD, MEGACAP, CKG	View
CKG57KX7R2A225K335JH	TDK Corporation, 2.2µF ±10% 100V Ceramic Capacitor X7R Nonstandard SMD, MEGACAP, CKG	View
CKG32KX7S1H685K335AJ	TDK Corporation, 6.8µF ±10% 50V Ceramic Capacitor X7S Nonstandard SMD, MEGACAP, CKG	View
CKG32KX7R2E224K335AH	TDK Corporation, 0.22µF ±10% 250V Ceramic Capacitor X7R Nonstandard SMD, MEGACAP, CKG	View
CKG57KX7S2A156M335JJ	TDK Corporation, 15µF ±20% 100V Ceramic Capacitor X7S Nonstandard SMD, MEGACAP, CKG	View

CKG57KX7R1H475K335JH

Part NumberCKG57KX7R1H475K335JH
