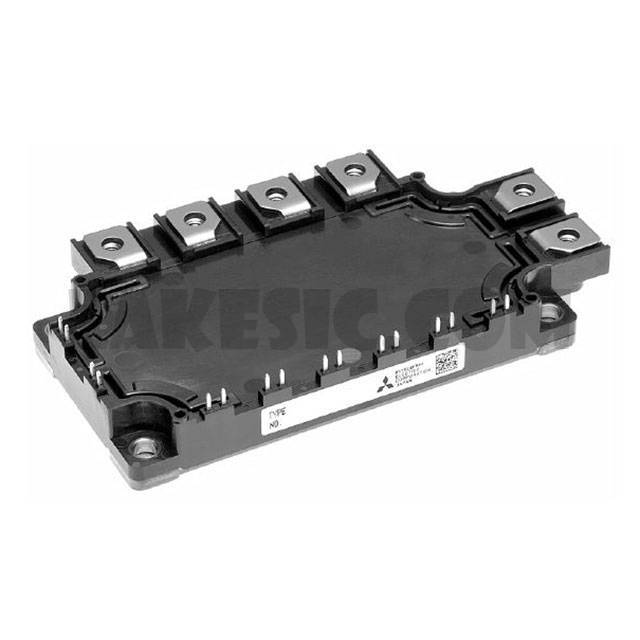

CM150RX-24S1

Part NumberCM150RX-24S1

ManufacturerPowerex Inc.

DescriptionIGBT MODULE NX-SERIES 7-PAC

DatasheetCM150RX-24S1

Package / CaseModule

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Three Phase Inverter with Brake 1200V 150A 935W Chassis Mount Module

To learn about the specification of CM150RX-24S1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CM150RX-24S1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CM150RX-24S1.
We are offering CM150RX-24S1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CM150RX-24S1 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

CM150RX-24S1

Standard Package

Manufacturer

Powerex Inc.

Series

Part Status

Discontinued at Digi-Key

IGBT Type

Configuration

Three Phase Inverter with Brake

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

150A

Power - Max

935W

Vce(on) (Max) @ Vge, Ic

2.25V @ 15V, 150A

Current - Collector Cutoff (Max)

1mA

Input Capacitance (Cies) @ Vce

15nF @ 10V

Input

Standard

NTC Thermistor

Yes

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

Module

Supplier Device Package

Module
