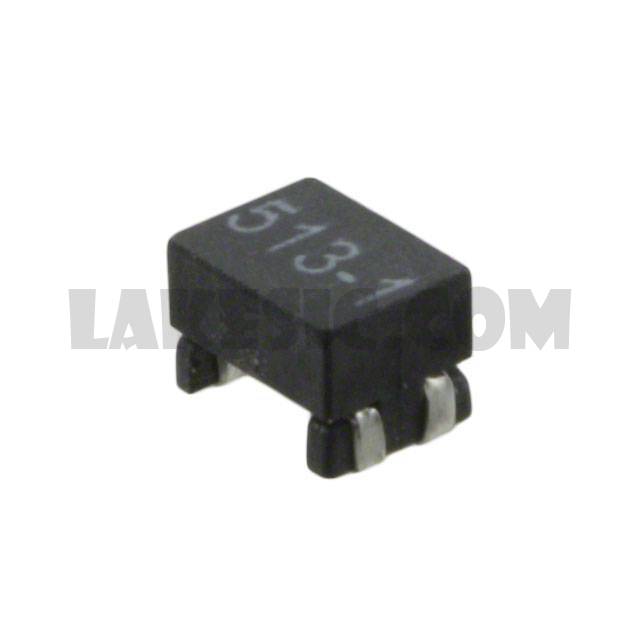

CM1812C282R-10

Part NumberCM1812C282R-10

ManufacturerLaird-Signal Integrity Products

DescriptionCMC 200MA 2LN 2.82 KOHM SMD

DatasheetCM1812C282R-10 Drawing

Package / Case1812 (4532 Metric), 4 Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2 Line Common Mode Choke Surface Mount 2.82 kOhms @ 100MHz 200mA DCR 500mOhm

To learn about the specification of CM1812C282R-10, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CM1812C282R-10 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CM1812C282R-10.
We are offering CM1812C282R-10 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CM1812C282R-10 - Product Attributes

Categories

Filters / Common Mode Chokes

Datasheet

CM1812C282R-10 Drawing

Standard Package

2500

Manufacturer

Laird-Signal Integrity Products

Series

Packaging

Tape & Reel (TR)

Part Status

Active

Filter Type

Power, Signal Line

Number of Lines

Impedance @ Frequency

2.82 kOhms @ 100MHz

Current Rating (Max)

200mA

DC Resistance (DCR) (Max)

500mOhm

Voltage Rating - DC

80V

Voltage Rating - AC

Operating Temperature

-40°C ~ 125°C

Ratings

Approvals

Features

Mounting Type

Surface Mount

Size / Dimension

0.205" L x 0.138" W (5.20mm x 3.50mm)

Height (Max)

0.140" (3.55mm)

Package / Case

1812 (4532 Metric), 4 Leads
