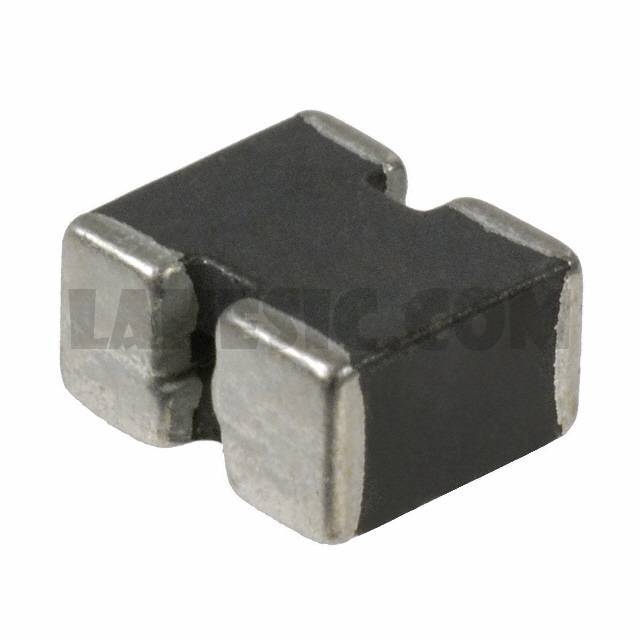

CM1922X330R-00

Part NumberCM1922X330R-00

ManufacturerLaird-Signal Integrity Products

DescriptionCMC 10A 2LN 33 OHM SMD

DatasheetCM1922X330R-00

Package / CaseHorizontal, 4 PC Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2 Line Common Mode Choke Surface Mount 33 Ohms @ 100MHz 10A DCR 3mOhm

To learn about the specification of CM1922X330R-00, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CM1922X330R-00 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CM1922X330R-00.
We are offering CM1922X330R-00 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CM1922X330R-00 - Product Attributes

Categories

Filters / Common Mode Chokes

Datasheet

CM1922X330R-00

Standard Package

2500

Manufacturer

Laird-Signal Integrity Products

Series

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Filter Type

Power, Signal Line

Number of Lines

Impedance @ Frequency

33 Ohms @ 100MHz

Current Rating (Max)

10A

DC Resistance (DCR) (Max)

3mOhm

Voltage Rating - DC

Voltage Rating - AC

Operating Temperature

-55°C ~ 125°C

Ratings

Approvals

Features

Mounting Type

Surface Mount

Size / Dimension

0.220" L x 0.185" W (5.60mm x 4.70mm)

Height (Max)

0.112" (2.85mm)

Package / Case

Horizontal, 4 PC Pad
