CM2824B103R-10
CM2824B103R-10

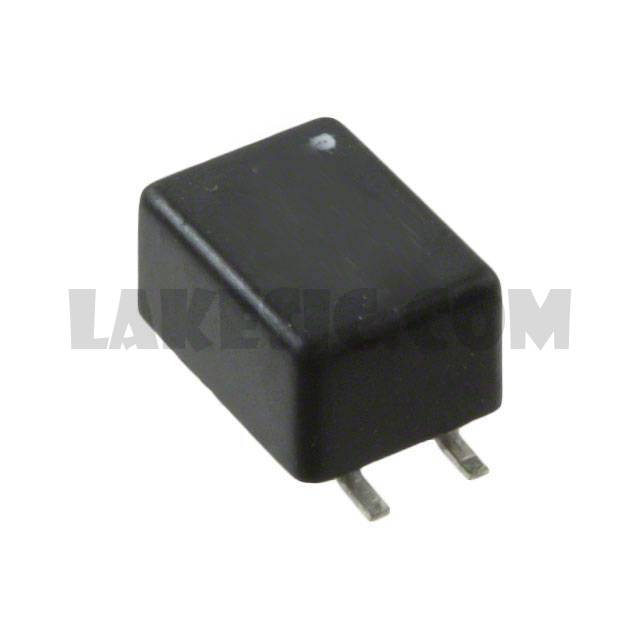

Part Number CM2824B103R-10 Description CMC 200MA 2LN 400 OHM SMD Package / Case Horizontal, 4 Flat LeadUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 2 Line Common Mode Choke Surface Mount 400 Ohms @ 100MHz 200mA DCR 1.3Ohm
To learn about the specification of CM2824B103R-10, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CM2824B103R-10 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CM2824B103R-10.
We are offering CM2824B103R-10 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
CM2824B103R-10 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet CM2824B103R-10 Drawing Standard Package 1500 Manufacturer Laird-Signal Integrity Products Series CM Packaging Tape & Reel (TR) Part Status Active Filter Type Power, Signal Line Number of Lines 2 Impedance @ Frequency 400 Ohms @ 100MHz Current Rating (Max) 200mA DC Resistance (DCR) (Max) 1.3Ohm Voltage Rating - DC 80V Voltage Rating - AC - Operating Temperature -40°C ~ 100°C Ratings - Approvals - Features - Mounting Type Surface Mount Size / Dimension 0.354" L x 0.217" W (9.00mm x 5.50mm) Height (Max) 0.193" (4.90mm) Package / Case Horizontal, 4 Flat Lead
